Date Picker Dialog Box (DatePickerDialog)

A date picker dialog box is a dialog box that allows users to select a date from the given range.

NOTE

The APIs of this module are supported since API version 8. Updates will be marked with a superscript to indicate their earliest API version.

The functionality of this module depends on UI context. This means that the APIs of this module cannot be used where the UI context is unclear. For details, see UIContext.

Since API version 10, you can use the showDatePickerDialog API in UIContext, which ensures that the date picker dialog box is shown in the intended UI instance.

DatePickerDialog

show

static show(options?: DatePickerDialogOptions)

Shows a date picker dialog box.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

DatePickerDialogOptions

Inherited from DatePickerOptions.

System capability: SystemCapability.ArkUI.ArkUI.Full

LunarSwitchStyle¹⁴⁺

Defines the style of the lunar calendar switch in the DatePickerDialog component.

Atomic service API: This API can be used in atomic services since API version 14.

System capability: SystemCapability.ArkUI.ArkUI.Full

PickerDialogButtonStyle¹²⁺

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

Handling in the case of exceptions

The valid date range is from 1900-1-31 to 2100-12-31.

The exception detection and handling with the selected date comes after that with the start date and end date.

Example

NOTE

For clarity in UI execution context, you are advised to use the showDatePickerDialog API in UIContext.

Example 1: Setting the Display Time

This example demonstrates how to set the display time using showTime, useMilitaryTime, and dateTimeOptions.

// xxx.ets
@Entry
@Component
struct DatePickerDialogExample {
  selectedDate: Date = new Date("2010-1-1")

  build() {
    Column() {
      Button("DatePickerDialog")
        .margin(20)
        .onClick(() => {
          DatePickerDialog.show({
            // You are advised to use this.getUIContext().showDatePickerDialog().
            start: new Date("2000-1-1"),
            end: new Date("2100-12-31"),
            selected: this.selectedDate,
            showTime: true,
            useMilitaryTime: false,
            dateTimeOptions: { hour: "numeric", minute: "2-digit" },
            onDateAccept: (value: Date) => {
              // Use the setFullYear method to set the date when the OK button is touched. In this way, when the date picker dialog box is displayed again, the selected date is the date last confirmed.
              this.selectedDate = value
              console.info("DatePickerDialog:onDateAccept()" + value.toString())
            },
            onCancel: () => {
              console.info("DatePickerDialog:onCancel()")
            },
            onDateChange: (value: Date) => {
              console.info("DatePickerDialog:onDateChange()" + value.toString())
            },
            onDidAppear: () => {
              console.info("DatePickerDialog:onDidAppear()")
            },
            onDidDisappear: () => {
              console.info("DatePickerDialog:onDidDisappear()")
            },
            onWillAppear: () => {
              console.info("DatePickerDialog:onWillAppear()")
            },
            onWillDisappear: () => {
              console.info("DatePickerDialog:onWillDisappear()")
            }
          })
        })
    }.width('100%')
  }
}

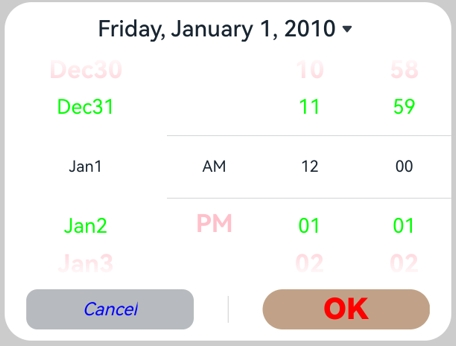

Example 2: Customizing the Style

In this example, disappearTextStyle, textStyle, selectedTextStyle, acceptButtonStyle, and cancelButtonStyle are configured to customize the text and button style.

// xxx.ets
@Entry
@Component
struct DatePickerDialogExample {
  selectedDate: Date = new Date("2010-1-1")

  build() {
    Column() {
      Button("DatePickerDialog")
        .margin(20)
        .onClick(() => {
          DatePickerDialog.show({
            start: new Date("2000-1-1"),
            end: new Date("2100-12-31"),
            selected: this.selectedDate,
            disappearTextStyle: { color: '#297bec', font: { size: '20fp', weight: FontWeight.Bold } },
            textStyle: { color: Color.Black, font: { size: '18fp', weight: FontWeight.Normal } },
            selectedTextStyle: { color: Color.Blue, font: { size: '26fp', weight: FontWeight.Regular } },
            acceptButtonStyle: {
              type: ButtonType.Normal,
              style: ButtonStyleMode.NORMAL,
              role: ButtonRole.NORMAL,
              fontColor: 'rgb(81, 81, 216)',
              fontSize: '26fp',
              fontWeight: FontWeight.Bolder,
              fontStyle: FontStyle.Normal,
              fontFamily: 'sans-serif',
              backgroundColor: '#A6ACAF',
              borderRadius: 20
            },
            cancelButtonStyle: {
              type: ButtonType.Normal,
              style: ButtonStyleMode.NORMAL,
              role: ButtonRole.NORMAL,
              fontColor: Color.Blue,
              fontSize: '16fp',
              fontWeight: FontWeight.Normal,
              fontStyle: FontStyle.Italic,
              fontFamily: 'sans-serif',
              backgroundColor: '#50182431',
              borderRadius: 10
            },
            onDateAccept: (value: Date) => {
              // Use the setFullYear method to set the date when the OK button is touched. In this way, when the date picker dialog box is displayed again, the selected date is the date last confirmed.
              this.selectedDate = value
              console.info("DatePickerDialog:onDateAccept()" + value.toString())
            },
            onCancel: () => {
              console.info("DatePickerDialog:onCancel()")
            },
            onDateChange: (value: Date) => {
              console.info("DatePickerDialog:onDateChange()" + value.toString())
            },
            onDidAppear: () => {
              console.info("DatePickerDialog:onDidAppear()")
            },
            onDidDisappear: () => {
              console.info("DatePickerDialog:onDidDisappear()")
            },
            onWillAppear: () => {
              console.info("DatePickerDialog:onWillAppear()")
            },
            onWillDisappear: () => {
              console.info("DatePickerDialog:onWillDisappear()")
            }
          })
        })
    }.width('100%')
  }
}

NOTE

To implement a fully customized date picker dialog box, create a custom dialog box and then implement the DatePicker component.

Example 3: Configuring a Dialog Box in the Hover State

This example demonstrates how to set the layout area of a dialog box in hover mode on a foldable device.

@Entry
@Component
struct DatePickerDialogExample {
  selectedDate: Date = new Date("2010-1-1");

  build() {
    Column() {
      Button("DatePickerDialog")
        .margin(20)
        .onClick(() => {
          DatePickerDialog.show({ // You are advised to use this.getUIContext().showDatePickerDialog().
            start: new Date("2000-1-1"),
            end: new Date("2100-12-31"),
            selected: this.selectedDate,
            showTime: true,
            useMilitaryTime: false,
            disappearTextStyle: { color: Color.Pink, font: { size: '22fp', weight: FontWeight.Bold }},
            textStyle: { color: '#ff00ff00', font: { size: '18fp', weight: FontWeight.Normal }},
            selectedTextStyle: { color: '#ff182431', font: { size: '14fp', weight: FontWeight.Regular }},
            onDateAccept: (value: Date) => {
              // Use the setFullYear method to set the date when the OK button is touched. In this way, when the date picker dialog box is displayed again, the selected date is the date last confirmed.
              this.selectedDate = value;
              console.info("DatePickerDialog:onDateAccept()" + value.toString());
            },
            onCancel: () => {
              console.info("DatePickerDialog:onCancel()");
            },
            onDateChange: (value: Date) => {
              console.info("DatePickerDialog:onDateChange()" + value.toString());
            },
            onDidAppear: () => {
              console.info("DatePickerDialog:onDidAppear()");
            },
            onDidDisappear: () => {
              console.info("DatePickerDialog:onDidDisappear()");
            },
            onWillAppear: () => {
              console.info("DatePickerDialog:onWillAppear()");
            },
            onWillDisappear: () => {
              console.info("DatePickerDialog:onWillDisappear()");
            },
            enableHoverMode: true,
            hoverModeArea: HoverModeAreaType.TOP_SCREEN
          })
        })
    }.width('100%')
  }
}

Example 4: Setting the Dialog Box Position

This example demonstrates how to set the position of a dialog box using alignment and offset.

// xxx.ets
@Entry
@Component
struct DatePickerDialogExample {
  selectedDate: Date = new Date("2010-1-1")

  build() {
    Column() {
      Button("DatePickerDialog")
        .margin(20)
        .onClick(() => {
          DatePickerDialog.show({
            // You are advised to use this.getUIContext().showDatePickerDialog().
            start: new Date("2000-1-1"),
            end: new Date("2100-12-31"),
            selected: this.selectedDate,
            alignment: DialogAlignment.Center,
            offset: { dx: 20, dy: 0 },
            onDateAccept: (value: Date) => {
              // Use the setFullYear method to set the date when the OK button is touched. In this way, when the date picker dialog box is displayed again, the selected date is the date last confirmed.
              this.selectedDate = value
              console.info("DatePickerDialog:onDateAccept()" + value.toString())
            }
          })
        })
    }.width('100%')
  }
}

Example 5: Setting the Mask Area

This example demonstrates how to set the mask area using maskRect.

// xxx.ets
@Entry
@Component
struct DatePickerDialogExample {
  selectedDate: Date = new Date("2010-1-1")

  build() {
    Column() {
      Button("DatePickerDialog")
        .margin(20)
        .onClick(() => {
          DatePickerDialog.show({
            start: new Date("2000-1-1"),
            end: new Date("2100-12-31"),
            selected: this.selectedDate,
            maskRect: {
              x: 30,
              y: 60,
              width: '100%',
              height: '60%'
            },
            onDateAccept: (value: Date) => {
              // Use the setFullYear method to set the date when the OK button is touched. In this way, when the date picker dialog box is displayed again, the selected date is the date last confirmed.
              this.selectedDate = value
              console.info("DatePickerDialog:onDateAccept()" + value.toString())
            }
          })
        })
    }.width('100%')
  }
}

Example 6: Setting the Background

This example demonstrates how to set the dialog box background using backgroundColor, backgroundBlurStyle, and shadow.

// xxx.ets
@Entry
@Component
struct DatePickerDialogExample {
  selectedDate: Date = new Date("2010-1-1")

  build() {
    Column() {
      Button("DatePickerDialog")
        .margin(20)
        .onClick(() => {
          DatePickerDialog.show({
            start: new Date("2000-1-1"),
            end: new Date("2100-12-31"),
            selected: this.selectedDate,
            backgroundColor: 'rgb(204, 226, 251)',
            backgroundBlurStyle: BlurStyle.NONE,
            shadow: ShadowStyle.OUTER_FLOATING_SM,
            onDateAccept: (value: Date) => {
              // Use the setFullYear method to set the date when the OK button is touched. In this way, when the date picker dialog box is displayed again, the selected date is the date last confirmed.
              this.selectedDate = value
              console.info("DatePickerDialog:onDateAccept()" + value.toString())
            }
          })
        })
    }.width('100%')
  }
}

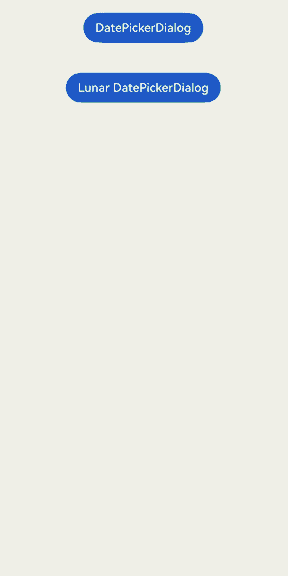

Example 7: Switching Between Gregorian and Lunar Calendars

This example demonstrates how to set the date picker dialog box to display either the Gregorian (solar) calendar or the lunar calendar using lunar and lunarSwitch.

// xxx.ets
@Entry
@Component
struct DatePickerDialogExample {
  selectedDate: Date = new Date("2010-1-1")

  build() {
    Column() {
      Button("DatePickerDialog")
        .margin(20)
        .onClick(() => {
          DatePickerDialog.show({
            start: new Date("2000-1-1"),
            end: new Date("2100-12-31"),
            selected: this.selectedDate,
            lunar: false,
            onDateAccept: (value: Date) => {
              // Use the setFullYear method to set the date when the OK button is touched. In this way, when the date picker dialog box is displayed again, the selected date is the date last confirmed.
              this.selectedDate = value
              console.info("DatePickerDialog:onDateAccept()" + value.toString())
            }
          })
        })

      Button("Lunar DatePickerDialog")
        .margin(20)
        .onClick(() => {
          DatePickerDialog.show({
            start: new Date("2000-1-1"),
            end: new Date("2100-12-31"),
            selected: this.selectedDate,
            lunar: true,
            lunarSwitch: true,
            onDateAccept: (value: Date) => {
              this.selectedDate = value
              console.info("DatePickerDialog:onDateAccept()" + value.toString())
            }
          })
        })
    }.width('100%')
  }
}

Example 8: Setting Display of Month and Day Columns

This example demonstrates how to configure the mode parameter to display only the month and day columns in the date picker dialog box.

// xxx.ets
@Entry
@Component
struct DatePickerDialogExample {
  selectedDate: Date = new Date("2010-1-1")

  build() {
    Column() {
      Button("DatePickerDialog")
        .margin(20)
        .onClick(() => {
          DatePickerDialog.show({
            start: new Date("2000-1-1"),
            end: new Date("2100-12-31"),
            selected: this.selectedDate,
            mode: DatePickerMode.MONTH_AND_DAY,
            onDateAccept: (value: Date) => {
              // Use the setFullYear method to set the date when the OK button is touched. In this way, when the date picker dialog box is displayed again, the selected date is the date last confirmed.
              this.selectedDate = value
              console.info("DatePickerDialog:onDateAccept()" + value.toString())
            }
          })
        })
    }.width('100%')
  }
}
