Custom Dialog Box (CustomDialog)

A custom dialog box is a dialog box you customize by using APIs of the CustomDialogController class. You can set the style and content to your preference for a custom dialog box.

NOTE

The APIs of this module are supported since API version 7. Updates will be marked with a superscript to indicate their earliest API version.

APIs

constructor(value: CustomDialogControllerOptions)

Defines a custom dialog box.

NOTE

No parameters of the custom dialog box can be dynamically updated.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

CustomDialogControllerOptions

System capability: SystemCapability.ArkUI.ArkUI.Full

NOTE

• Pressing the Back or ESC key closes the dialog box.

• If the dialog box reaches its maximum allowable height on the screen when avoiding the soft keyboard, it reduces its height to fit. It should be noted that this height adjustment is applied to the outermost container. If a child component within this container has been assigned a larger fixed height, since the container does not clip its content by default, parts of the dialog box may still be displayed off-screen.

• Use the custom dialog box to contain simple alert messages only. Do not use it as a page. When the dialog box avoids the soft keyboard, there is a 16 vp safe spacing between the two.

• Currently, dialog boxes in ArkUI do not close automatically when you switch pages unless you manually call close. To enable a dialog box to be covered during page navigation, consider using the Navigation component. For details, see the page display mode: dialog mode.

DismissDialogAction¹²⁺

Provides information about the action to dismiss the dialog box.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

Properties

CustomDialogController

Atomic service API: This API can be used in atomic services since API version 11.

Objects to Import

dialogController : CustomDialogController|null = new CustomDialogController(CustomDialogControllerOptions)

NOTE

CustomDialogController is effective only when it is a member variable of the @CustomDialog and @Component decorated struct and is defined in the @Component decorated struct. For details, see the following example.

constructor

constructor(value: CustomDialogControllerOptions)

Constructor for a custom dialog box.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

open

open()

Opens the content of the custom dialog box. This API can be called multiple times. If the dialog box is displayed in a subwindow, no new subwindow is allowed.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

close

close()

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Closes the custom dialog box. If the dialog box is closed, this API does not take effect.

Example

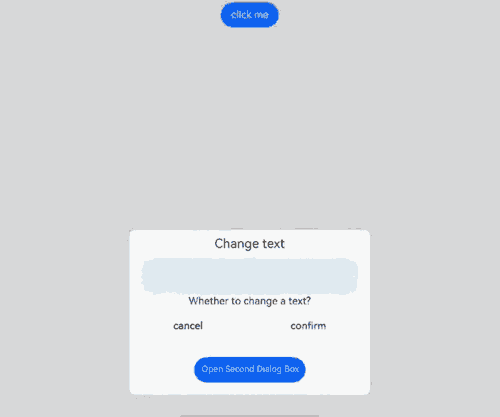

Example 1: Opening Nested Dialog Boxes

This example demonstrates how to open one or more custom dialog boxes within another custom dialog box.

// xxx.ets
@CustomDialog
struct CustomDialogExampleTwo {
  controllerTwo?: CustomDialogController
  build() {
    Column() {
      Text('I'm the second dialog box')
        .fontSize(30)
        .height(100)
      Button('Close Second Dialog Box')
        .onClick(() => {
          if (this.controllerTwo != undefined) {
            this.controllerTwo.close()
          }
        })
        .margin(20)
    }
  }
}
@CustomDialog
@Component
struct CustomDialogExample {
  @Link textValue: string
  @Link inputValue: string
  dialogControllerTwo: CustomDialogController|null = new CustomDialogController({
    builder: CustomDialogExampleTwo(),
    alignment: DialogAlignment.Bottom,
    onWillDismiss:(dismissDialogAction: DismissDialogAction)=> {
      console.info("reason=" + JSON.stringify(dismissDialogAction.reason))
      console.log("dialog onWillDismiss")
      if (dismissDialogAction.reason == DismissReason.PRESS_BACK) {
        dismissDialogAction.dismiss()
      }
      if (dismissDialogAction.reason == DismissReason.TOUCH_OUTSIDE) {
        dismissDialogAction.dismiss()
      }
    },
    offset: { dx: 0, dy: -25 } })
  controller?: CustomDialogController
  // You can pass in multiple other controllers in the CustomDialog to open one or more other CustomDialogs in the CustomDialog. In this case, you must place the controller pointing to the self behind all controllers.
  cancel: () => void = () => {
  }
  confirm: () => void = () => {
  }

  build() {
    Column() {
      Text('Change text').fontSize(20).margin({ top: 10, bottom: 10 })
      TextInput({ placeholder: '', text: this.textValue }).height(60).width('90%')
        .onChange((value: string) => {
          this.textValue = value
        })
      Text('Are you sure you want to change the text?').fontSize(16).margin({ bottom: 10 })
      Flex({ justifyContent: FlexAlign.SpaceAround }) {
        Button('No')
          .onClick(() => {
            if (this.controller != undefined) {
              this.controller.close()
              this.cancel()
            }
          }).backgroundColor(0xffffff).fontColor(Color.Black)
        Button('OK')
          .onClick(() => {
            if (this.controller != undefined) {
              this.inputValue = this.textValue
              this.controller.close()
              this.confirm()
            }
          }).backgroundColor(0xffffff).fontColor(Color.Red)
      }.margin({ bottom: 10 })

      Button('Open Second Dialog Box')
        .onClick(() => {
          if (this.dialogControllerTwo != null) {
            this.dialogControllerTwo.open()
          }
        })
        .margin(20)
    }.borderRadius(10)
    // When using the border or cornerRadius attribute, use it together with the borderRadius attribute.
  }
}
@Entry
@Component
struct CustomDialogUser {
  @State textValue: string = ''
  @State inputValue: string = 'click me'
  dialogController: CustomDialogController|null = new CustomDialogController({
    builder: CustomDialogExample({
      cancel: ()=> { this.onCancel() },
      confirm: ()=> { this.onAccept() },
      textValue: $textValue,
      inputValue: $inputValue
    }),
    cancel: this.exitApp,
    autoCancel: true,
    onWillDismiss:(dismissDialogAction: DismissDialogAction)=> {
      console.info("reason=" + JSON.stringify(dismissDialogAction.reason))
      console.log("dialog onWillDismiss")
      if (dismissDialogAction.reason == DismissReason.PRESS_BACK) {
        dismissDialogAction.dismiss()
      }
      if (dismissDialogAction.reason == DismissReason.TOUCH_OUTSIDE) {
        dismissDialogAction.dismiss()
      }
    },
    alignment: DialogAlignment.Bottom,
    offset: { dx: 0, dy: -20 },
    gridCount: 4,
    customStyle: false,
    cornerRadius: 10,
  })

  // Set dialogController to null when the custom component is about to be destroyed.
  aboutToDisappear() {
    this.dialogController = null // Set dialogController to null.
  }

  onCancel() {
    console.info('Callback when the first button is clicked')
  }

  onAccept() {
    console.info('Callback when the second button is clicked')
  }

  exitApp() {
    console.info('Click the callback in the blank area')
  }
  build() {
    Column() {
      Button(this.inputValue)
        .onClick(() => {
          if (this.dialogController != null) {
            this.dialogController.open()
          }
        }).backgroundColor(0x317aff)
    }.width('100%').margin({ top: 5 })
  }
}

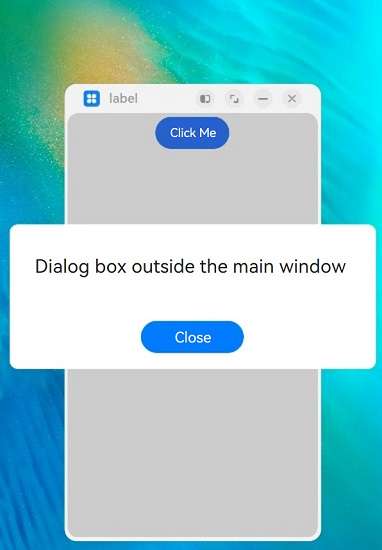

Example 2: Opening a Dialog Box Outside the Main Window

This example demonstrates how to configure a dialog box to display outside the main window on a 2-in-1 device by setting showInSubWindow to true.

// xxx.ets
@CustomDialog
struct CustomDialogExample {
  controller?: CustomDialogController
  cancel: () => void = () => {
  }
  confirm: () => void = () => {
  }
  build() {
    Column() {
      Text('Dialog box outside the main window')
        .fontSize(30)
        .height(100)
      Button('Close')
        .onClick(() => {
          if (this.controller != undefined) {
            this.controller.close()
          }
        })
        .margin(20)
    }
  }
}
@Entry
@Component
struct CustomDialogUser {
  dialogController: CustomDialogController|null = new CustomDialogController({
    builder: CustomDialogExample({
      cancel: ()=> { this.onCancel() },
      confirm: ()=> { this.onAccept() }
    }),
    cancel: this.existApp,
    autoCancel: true,
    onWillDismiss:(dismissDialogAction: DismissDialogAction)=> {
      console.info("reason=" + JSON.stringify(dismissDialogAction.reason))
      console.log("dialog onWillDismiss")
      if (dismissDialogAction.reason == DismissReason.PRESS_BACK) {
        dismissDialogAction.dismiss()
      }
      if (dismissDialogAction.reason == DismissReason.TOUCH_OUTSIDE) {
        dismissDialogAction.dismiss()
      }
    },
    alignment: DialogAlignment.Center,
    offset: { dx: 0, dy: -20 },
    gridCount: 4,
    showInSubWindow: true,
    isModal: true,
    customStyle: false,
    cornerRadius: 10,
    focusable: true
  })
  // Set dialogController to null when the custom component is about to be destroyed.
  aboutToDisappear() {
    this.dialogController = null // Set dialogController to null.
  }

  onCancel() {
    console.info('Callback when the first button is clicked')
  }

  onAccept() {
    console.info('Callback when the second button is clicked')
  }

  existApp() {
    console.info('Click the callback in the blank area')
  }

  build() {
    Column() {
      Button('Click Me')
        .onClick(() => {
          if (this.dialogController != null) {
            this.dialogController.open()
          }
        }).backgroundColor(0x317aff)
    }.width('100%').margin({ top: 5 })
  }
}

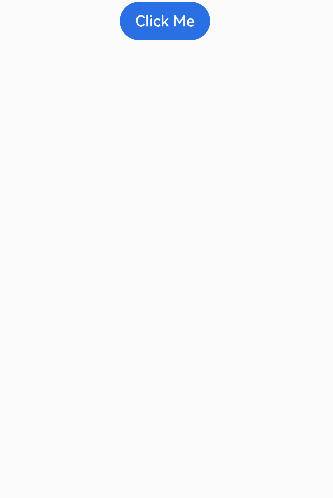

Example 3: Setting the Dialog Box Style

This example demonstrates how to set styles of a custom dialog box, including the width, height, background color, and shadow.

// xxx.ets
@CustomDialog
struct CustomDialogExample {
  controller?: CustomDialogController
  cancel: () => void = () => {
  }
  confirm: () => void = () => {
  }
  build() {
    Column() {
      Text('This is a custom dialog box')
        .fontSize(30)
        .height(100)
      Button('Close')
        .onClick(() => {
          if (this.controller != undefined) {
            this.controller.close()
          }
        })
        .margin(20)
    }
  }
}
@Entry
@Component
struct CustomDialogUser {
  dialogController: CustomDialogController|null = new CustomDialogController({
    builder: CustomDialogExample({
      cancel: ()=> { this.onCancel() },
      confirm: ()=> { this.onAccept() }
    }),
    cancel: this.existApp,
    autoCancel: true,
    onWillDismiss:(dismissDialogAction: DismissDialogAction)=> {
      console.info("reason=" + JSON.stringify(dismissDialogAction.reason))
      console.log("dialog onWillDismiss")
      if (dismissDialogAction.reason == DismissReason.PRESS_BACK) {
        dismissDialogAction.dismiss()
      }
      if (dismissDialogAction.reason == DismissReason.TOUCH_OUTSIDE) {
        dismissDialogAction.dismiss()
      }
    },
    alignment: DialogAlignment.Center,
    offset: { dx: 0, dy: -20 },
    customStyle: false,
    cornerRadius: 20,
    width: 300,
    height: 200,
    borderWidth: 1,
    borderStyle: BorderStyle.Dashed,// borderStyle must be used with borderWidth in pairs.
    borderColor: Color.Blue,// borderColor must be used with borderWidth in pairs.
    backgroundColor: Color.White,
    shadow: ({ radius: 20, color: Color.Grey, offsetX: 50, offsetY: 0}),
  })
  // Set dialogController to null when the custom component is about to be destroyed.
  aboutToDisappear() {
    this.dialogController = null // Set dialogController to null.
  }

  onCancel() {
    console.info('Callback when the first button is clicked')
  }

  onAccept() {
    console.info('Callback when the second button is clicked')
  }

  existApp() {
    console.info('Click the callback in the blank area')
  }

  build() {
    Column() {
      Button('Click Me')
        .onClick(() => {
          if (this.dialogController != null) {
            this.dialogController.open()
          }
        }).backgroundColor(0x317aff)
    }.width('100%').margin({ top: 5 })
  }
}

Example 4: Configuring a Dialog Box in the Hover State

This example demonstrates how to set the layout area of a dialog box in the hover state on a foldable device.

@CustomDialog
@Component
struct CustomDialogExample {
  @Link textValue: string;
  @Link inputValue: string;
  controller?: CustomDialogController;

  build() {
    Column() {
      Text('Change text').fontSize(20).margin({ top: 10, bottom: 10 })
      TextInput({ placeholder: '', text: this.textValue }).height(60).width('90%')
        .onChange((value: string) => {
          this.textValue = value;
        })
      Text('Are you sure you want to change the text?').fontSize(16).margin({ bottom: 10 })
      Flex({ justifyContent: FlexAlign.SpaceAround }) {
        Button('No')
          .onClick(() => {
            if (this.controller != undefined) {
              this.controller.close();
            }
          }).backgroundColor(0xffffff).fontColor(Color.Black)
        Button('OK')
          .onClick(() => {
            if (this.controller != undefined) {
              this.inputValue = this.textValue;
              this.controller.close();
            }
          }).backgroundColor(0xffffff).fontColor(Color.Red)
      }.margin({ bottom: 10 })

      Button('Open Second Dialog Box')
        .margin(20)
    }.borderRadius(10)
    // When using the border or cornerRadius attribute, use it together with the borderRadius attribute.
  }
}
@Entry
@Component
struct CustomDialogUser {
  @State textValue: string = '';
  @State inputValue: string = 'click me';
  dialogController: CustomDialogController|null = new CustomDialogController({
    builder: CustomDialogExample({
      textValue: $textValue,
      inputValue: $inputValue
    }),
    cancel: this.exitApp,
    autoCancel: true,
    onWillDismiss: (dismissDialogAction: DismissDialogAction)=> {
      console.info("reason=" + JSON.stringify(dismissDialogAction.reason));
      console.log("dialog onWillDismiss");
      if (dismissDialogAction.reason == DismissReason.PRESS_BACK) {
        dismissDialogAction.dismiss();
      }
      if (dismissDialogAction.reason == DismissReason.TOUCH_OUTSIDE) {
        dismissDialogAction.dismiss();
      }
    },
    alignment: DialogAlignment.Bottom,
    offset: { dx: 0, dy: -20 },
    gridCount: 4,
    customStyle: false,
    cornerRadius: 10,
    enableHoverMode: true,
    hoverModeArea: HoverModeAreaType.TOP_SCREEN
  })

  // Set dialogController to null when the custom component is about to be destroyed.
  aboutToDisappear() {
    this.dialogController = null; // Set dialogController to null.
  }

  exitApp() {
    console.info('Click the callback in the blank area');
  }

  build() {
    Column() {
      Button(this.inputValue)
        .onClick(() => {
          if (this.dialogController != null) {
            this.dialogController.open();
          }
        }).backgroundColor(0x317aff)
    }.width('100%').margin({ top: 5 })
  }
}

你可能感兴趣的鸿蒙文章

harmony 鸿蒙ArcButton

harmony 鸿蒙ArcSlider

harmony 鸿蒙Chip

harmony 鸿蒙ChipGroup

harmony 鸿蒙ComposeListItem

harmony 鸿蒙ComposeTitleBar

harmony 鸿蒙advanced.Counter

harmony 鸿蒙Dialog Box (Dialog)

harmony 鸿蒙DialogV2

harmony 鸿蒙DownloadFileButton
