Custom Dialog Box (CustomDialog)

A custom dialog box is a dialog box you customize by using APIs of the CustomDialogController class. It can be used for user interactions, showing an ad, prize, alert, software update message, and more. For details, see Custom Dialog Box.

Creating a Custom Dialog Box

1. Use the \@CustomDialog decorator to create a custom dialog box.

2. Set the content for the \@CustomDialog decorated dialog box.

   @CustomDialog
   struct CustomDialogExample {
     controller: CustomDialogController = new CustomDialogController({
       builder: CustomDialogExample({}),
     })

     build() {
       Column() {
         Text ('I am content')
           .fontSize(20)
           .margin({ top: 10, bottom: 10 })
       }
     }
   }

1. Create a builder that is bound to the decorator.

    @Entry
    @Component
    struct CustomDialogUser {
      dialogController: CustomDialogController = new CustomDialogController({
        builder: CustomDialogExample(),
      })
    }

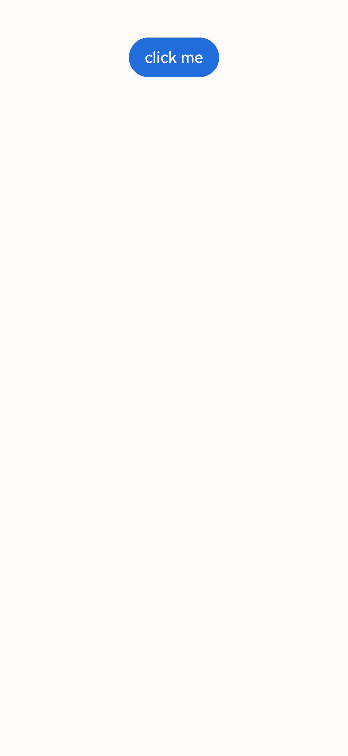

1. Click the component bound to the onClick event to display the dialog box.

   @Entry
   @Component
   struct CustomDialogUser {dialogController: CustomDialogController = new CustomDialogController({
       builder: CustomDialogExample(),
     })

     build() {
       Column() {
         Button('click me')
           .onClick(() => {
             this.dialogController.open()
           })
       }.width('100%').margin({ top: 5 })
     }
   }

Interaction with Custom Dialog Box

Custom dialog boxes can be used for data interactions to complete a series of response operations.

1. Add buttons in the \@CustomDialog decorator structure and add data functions.

  @CustomDialog
  struct CustomDialogExample {
    cancel: () => void = () => {
      console.info('Callback when the first button is clicked')
    }
    confirm: () => void = () => {
      console.info('Callback when the second button is clicked')
    }
    controller: CustomDialogController = new CustomDialogController({
      builder: CustomDialogExample({
        cancel: this.cancel,
        confirm: this.confirm,
      }),
    })

    build() {
      Column() {
        Text('I am content') .fontSize(20).margin({ top: 10, bottom: 10 })
        Flex({ justifyContent: FlexAlign.SpaceAround }) {
          Button('cancel')
            .onClick(() => {
              this.controller.close()
              this.cancel()
            }).backgroundColor(0xffffff).fontColor(Color.Black)
          Button('confirm')
            .onClick(() => {
              this.controller.close()
              this.confirm()
            }).backgroundColor(0xffffff).fontColor(Color.Red)
        }.margin({ bottom: 10 })
      }
    }
  }

1. Receive the page in the builder and create corresponding function operations.

  @Entry
  @Component
  struct CustomDialogUser {
    @State bud: Record<string, Function|void> = { 'cancel': this.onCancel(), 'confirm': this.onAccept() }
    dialogController: CustomDialogController = new CustomDialogController({
      builder: CustomDialogExample(this.bud),
    })

    onCancel() {
      console.info('Callback when the first button is clicked')
    }

    onAccept() {
      console.info('Callback when the second button is clicked')
    }

    build() {
      Column() {
        Button('Click Me')
          .onClick(() => {
            this.dialogController.open()
          })
      }.width('100%').margin({ top: 5 })
    }
  }

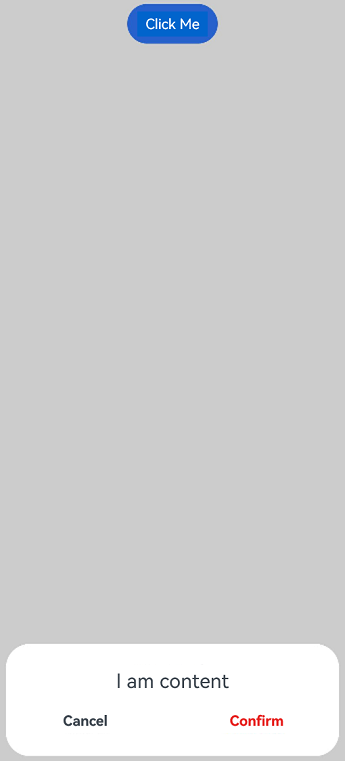

Sample Code

// xxx.ets
@CustomDialog
struct CustomDialogExample {
  controller: CustomDialogController = new CustomDialogController({
    builder: undefined
  })

  build() {
    Column() {
      Text ('I am content')
        .fontSize(20)
        .margin({ top: 10, bottom: 10 })
    }
  }
}

@Entry
@Component
struct CustomDialogUser {
  @State bud: Record<string, Function|void> = { 'cancel': this.onCancel(), 'confirm': this.onAccept() }
  dialogController: CustomDialogController = new CustomDialogController({
    builder: CustomDialogExample(this.bud),
  })

  onCancel() {
    console.info('Callback when the first button is clicked')
  }

  onAccept() {
    console.info('Callback when the second button is clicked')
  }

  build() {
    Column() {
      Button('Click Me')
        .onClick(() => {
          this.dialogController.open()
        })
    }.width('100%').margin({ top: 5 })
  }
}
