Obfuscation Principles and Capabilities of ArkGuard

Glossary

Term	Definition
HAP	The Harmony Ability Package (HAP) is the basic unit for installing and running applications. It is a module package generated by packaging code, resources, third-party libraries, and configuration files.
HAR	A Harmony Archive (HAR) is a static shared package that enables multiple modules or projects to share code such as ArkUI components and resources. It is created by using a static library.
HSP	A Harmony Shared Package (HSP) is a dynamic shared package for sharing code and resources. It is created by using a shared library.
Local HAR	HAR module in source code form.
Remote HAR	HAR generated after the build.
Local HSP	HSP module in source code form.
Remote HSP	HSP generated after the build.
Third-party library	Libraries developed by third parties and published to the OpenHarmony Third-Party Library Repository.
Name obfuscation	Changing class names, method names, variable names, and other identifiers to meaningless names.

Scope of Obfuscation Capabilities

Supported Languages

ArkGuard supports ArkTS, TS, and JS, but not C/C++, JSON, or resource files.

Obfuscation Capabilities

ArkGuard provides basic name obfuscation, code compression, and comment removal, but does not support advanced features like control obfuscation or data obfuscation.

It primarily offers name renaming and trustlist configuration for retention.

Limitations of Obfuscation Capabilities

Language Limitations

Code obfuscation tools vary in type analysis mechanisms, obfuscation strategies, and execution efficiency based on the target language. For example, ProGuard targets strongly-typed languages like Java, where each type has a clear definition source. This feature makes the type relationship tracing and processing in the obfuscation process more accurate, greatly reducing the need for retention rules.

In contrast, ArkGuard targets JS, TS, and ArkTS. JS supports dynamic modification of objects and functions at runtime, but obfuscation is a static process in the compilation phase. This difference may cause a failure in parsing obfuscated named at runtime, resulting in runtime exceptions. TS and ArkTS use a structural type system, where different named types with the same structure are considered as equivalent types. Therefore, it is difficult to trace the exact source of types. As such, when using ArkGuard, you need to configure trustlists for more syntax scenarios. Moreover, ArkGuard uses a global property retention mechanism that retains all properties with the same name according to the trustlist. It does not support precise retention settings for specific types.

To illustrate, consider this example:

Assume that ArkGuard allows the configuration of a trustlist for specific types. If class A1 is configured in a trustlist with its property prop1, but prop1 in class A2 is not in the trustlist, passing an instance of A2 (a2) to the test function would cause issues when accessing the prop1 property.

// Before obfuscation:
class A1 {
  prop1: string = '';
}

class A2 {
  prop1: string = '';
}

function test(input: A1) {
  console.log(input.prop1);
}

let a2 = new A2();
a2.prop1 = 'prop a2';
test(a2);

// After obfuscation:
class A1 {
  prop1: string = '';
}

class A2 {
  a: string = '';
}

function test(input: A1) {
  console.log(input.prop1);
}

let a2 = new A2();
a2.a = 'prop a2';
test(a2);

You should be aware of these differences and use unique names to achieve better obfuscation results.

Limited security assurance

Like other obfuscation tools, ArkGuard increases reverse engineering difficulty but cannot prevent it entirely.

You should not rely solely on ArkGuard for security. For higher security requirements, consider application encryption and third-party hardening measures.

Obfuscation Mechanism and Process

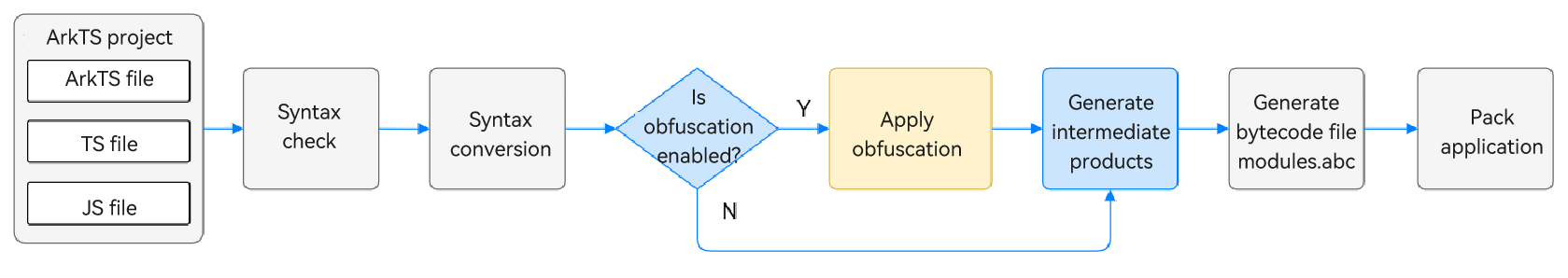

The following figure shows a simplified compilation process.

You can enable the obfuscation feature in the build-profile.json5 file of the module so that the source code can be automatically obfuscated during compilation and packaging.

During obfuscation, the tool reads the obfuscation switch. If the switch is enabled, it parses the obfuscation configuration file, merges rules according to the merging strategies, applies obfuscation to intermediate files (generated after syntax conversion), and writes the obfuscated files to the build directory. You can verify the obfuscation effect by examining the output in the build directory.

Before using obfuscation, you are advised to learn about the capabilities of obfuscation options and retention options, and select the appropriate capabilities for your needs.

Obfuscation Options

Summary of Existing Obfuscation Options

Function	Option
Disabling obfuscation	-disable-obfuscation
Obfuscating property names	-enable-property-obfuscation
Obfuscating string literal property names	-enable-string-property-obfuscation
Obfuscating top-level scope names	-enable-toplevel-obfuscation
Obfuscating imported/exported names	-enable-export-obfuscation
Obfuscating file names	-enable-filename-obfuscation
Compressing code	-compact
Removing declaration file comments	-remove-comments
Removing console logs	-remove-log
Printing name caches	-print-namecache
Reusing name caches	-apply-namecache
Printing unobfuscated names	-print-kept-names
Reducing the default language trustlist	-extra-options strip-language-default
Reducing the default system API trustlist	-extra-options strip-system-api-args
Retaining declaration file parameters	-keep-parameter-names
Merging dependent module options	-enable-lib-obfuscation-options
Marking trustlists in source code by comments	-use-keep-in-source

-disable-obfuscation

Disables code obfuscation.

If this option is configured, the default obfuscation capabilities (local variables and parameter names) and all configured obfuscation and retention options become invalid.

-enable-property-obfuscation

Enables property name obfuscation. The effect is as follows:

  // Before obfuscation:
  class TestA {
    static prop1: number = 0;
  }
  TestA.prop1;

  // After obfuscation:
  class TestA {
    static i: number = 0;
  }
  TestA.i;

If this option is configured, all property names except the following are obfuscated:

• Property names of classes and objects that are directly imported or exported by using import or export. For example, the property name data in the following example is not obfuscated.

  export class MyClass {
     data: string;
  }


• Property names in ArkUI components. For example, message and data in the following example are not obfuscated.

  @Component struct MyExample {
      @State message: string = "hello";
      data: number[] = [];
      // ...
  }


• Property names specified in retention options.

• Property names in the SDK API list. The SDK API list is a set of names automatically extracted from the SDK during build. Its cache file is systemApiCache.json, which is stored in build/default/cache/{…}/release/obfuscation in the project directory.

• String literal property names. For example, “name” and “age” in the following example are not obfuscated.

  let person = {"name": "abc"};
  person["age"] = 22;


-enable-string-property-obfuscation

Enables obfuscation of string literal property names. It is effective only if property name obfuscation is enabled.

To obfuscate string literal property names, you must use this option together with -enable-property-obfuscation. Example:

  -enable-property-obfuscation
  -enable-string-property-obfuscation

According to the preceding configuration, the obfuscation effect of “name” and “age” is as follows:

  // Before obfuscation:
  let person = {"name": "abc"};
  person["age"] = 22;

  // After obfuscation:
  let person = {"a": "abc"};
  person["b"] = 22;

NOTE

1. If a string literal property name in the code contains special characters, for example, let obj = {“\n”: 123, “”: 4, “ “: 5}, you are advised not to use the -enable-string-property-obfuscation option because these names may fail to be retained using retention options. Special characters refer to characters other than lowercase letters a-z, uppercase letters A-Z, digits 0-9, and underscores (_).

2. The property trustlist of the SDK API list does not contain string constants used in the declaration file. For example, the string ‘ohos.want.action.home’ in the example is not included in the property trustlist.

// Part of the SDK API file @ohos.app.ability.wantConstant:
export enum Params {
  ACTION_HOME = 'ohos.want.action.home'
}
// Source code example:
let params = obj['ohos.want.action.home'];

When the -enable-string-property-obfuscation option is used, use the -keep-property-name option if you want to retain the property names in the SDK API string constants in the source code, for example, obj[‘ohos.want.action.home’].

-enable-toplevel-obfuscation

Enables obfuscation of top-level scope names. The effect is as follows:

  // Before obfuscation:
  let count = 0;

  // After obfuscation:
  let s = 0;

If this option is configured, the names of all top-level scopes except the following are obfuscated:

• Names that are directly imported or exported by using import or export.
• Top-level scope names that are not declared in the current file.
• Top-level scope names specified by retention options.
• Top-level scope names in the SDK API list.

-enable-export-obfuscation

Enables obfuscation for imported/exported names. The effect is as follows:

  // Before obfuscation:
  namespace ns {
    export type customT = string;
  }

  // After obfuscation:
  namespace ns {
    export type h = string;
  }

If this option is configured, names imported/exported in non-top-level scopes will be obfuscated. To obfuscate names imported/exported in the top-level scope, use this option with -enable-toplevel-obfuscation. To obfuscate imported or exported property names, use this option -enable-property-obfuscation. Note the following special scenarios:

• Names exported from remote HARs (packages whose real paths are in oh_modules) and their property names are not obfuscated.
• Names and property names specified by retention options are not obfuscated.
• Names in the SDK API list are not obfuscated.

-enable-filename-obfuscation

Enables obfuscation of file/folder names. The effect is as follows:

  // Before obfuscation:
  import * as m from '../test1/test2';
  import { foo } from '../test1/test2';
  const module = import('../test1/test2');

  // After obfuscation:
  import * as m from '../a/b';
  import { foo } from '../a/b';
  const module = import('../a/b');

If this option is configured, all file/folder names except the following are obfuscated:

• File or folder names specified by the main and types fields in the oh-package.json5 file.
• File or folder names specified by the srcEntry field in the module.json5 file of the module.
• File or folder names specified by -keep-file-name.
• File or folder names in non-ECMAScript module reference mode (for example, const module = require(‘./module’)).
• File or folder names in non-path reference mode. For example, json5 in the example import module from ‘json5’ is not obfuscated.

NOTE

For files that the system needs to load files during application running, manually configure them into a trustlist using the -keep-file-name option. Otherwise, the application may fail to run.

The names of the compilation entry file, ability component file, and Worker multithreaded file cannot be obfuscated and have been automatically added to the trustlist in DevEco Studio 5.0.3.500. No manual configuration is required. For other files that cannot be obfuscated, you need to manually configure their names in the trustlist.

-compact

Removes unnecessary spaces and all line feeds.

If this option is configured, all code is compressed to one line. The effect is as follows:

  // Before obfuscation:
  class TestA {
    static prop1: number = 0;
  }
  TestA.prop1;

  // After obfuscation:
  class TestA { static prop1: number = 0; } TestA.prop1;

NOTE

The stack information built in release mode contains the line number of code, but not the column number. Therefore, when the compact option is used, the source code cannot be located based on the line number in the stack information.

-remove-comments

Removes JsDoc comments from the declaration file generated after compilation. The effect is as follows:

Before obfuscation:

  /**
   * @todo
   */
  declare let count: number;

After obfuscation:

  declare let count: number;

You can configure -keep-comments to retain the JsDoc comments in the declaration file.

NOTE

By default, all comments in the source code file generated after the compilation are removed and cannot be retained.

-remove-log

Removes calls to console.* statements, provided the return value is not used. The effect is as follows:

  // Before obfuscation:
  if (flag) {
    console.log("hello");
  }

  // After obfuscation:
  if (flag) {
  }

If this option is configured, the console.* statements in the following scenarios are removed:

1. Calls at the top layer of a file.
2. Calls within a code block. Example: function foo() { console.log('in block'); }
3. Calls with a module or namespace. Example: namespace ns { console.log('in ns'); }
4. Calls within a switch statement.

-print-namecache

Saves the name cache to the specified file path. The name cache contains the mappings of names before and after obfuscation. The filepath parameter is mandatory. It supports relative and absolute paths. For a relative path, the start point is the current directory of the obfuscation configuration file. The file name extension in filepath must be .json.

Example:

-print-namecache
./customCache/nameCache.json

NOTE

A new namecache.json file is generated each time the module if fully built. Therefore, save a copy of the file each time you publish a new version.

-apply-namecache

Reuses a name cache file in the specified file path. The filepath parameter is mandatory. It supports relative and absolute paths. For a relative path, the start point is the current directory of the obfuscation configuration file. The file name extension in filepath must be .json. This option should be used in incremental build scenarios. After this option is enabled, the names will be obfuscated according to the cache mappings. If there is no corresponding name, new random names are used.

Example:

-apply-namecache
./customCache/nameCache.json

By default, DevEco Studio saves cache files in a temporary cache directory and automatically applies the cache files during incremental build. Default cache directory: build/default/cache/{…}/release/obfuscation

-print-kept-names

Prints the unobfuscated list and full trustlist to the specified file path. The filepath parameter is optional. It supports relative paths, with the start point being the current directory of the obfuscation configuration file. The file name extension in filepath must be .json.

If the filepath parameter is not specified, the unobfuscated list (keptNames.json) and full trustlist (whitelist.json) are output to the cache directory build/default/cache/{…}/release/obfuscation by default.

If the filepath parameter is specified, the unobfuscated list is also exported to the path specified by this parameter.

The full trustlist collected during a full build is classified into the following types:

(1) ‘sdk’: system APIs.

(2) ‘lang’: keywords in the language.

(3) ‘conf’: trustlist in the user-defined retention options.

(4) ‘struct’: properties in ArkUI structs.

(5) ‘exported’: names and properties exported.

(6) ‘strProp’: string properties.

(7) ‘enum’: enum members.

The ‘sdk’ trustlist is exported to the systemApiCache.json file in the build/default/cache/{…}/release/obfuscation/ directory, and other trustlists are exported to the whitelist.json file.

The keptNames.json file contains the names that are not obfuscated and the reasons why they are not obfuscated. There are seven reasons: The name is the same as that in the SDK trustlist, language trustlist, user-defined trustlist, struct trustlist, exported name trustlist, or string property trustlist (when string literal property name obfuscation is disabled), or enum trustlist.

NOTE

1. During HAR module compilation with property name obfuscation enabled, enum member names are collected into the ‘enum’ trustlist. Example:

enum Test {
  member1,
  member2
}

The ‘enum’ trustlist includes names such as [‘member1’, ‘member2’]. This requirement stems from the fact that, in earlier HAR module versions, the compilation process produced JS files. In these JS files, enums are represented as immediately invoked functions, with enum members expressed as string properties and constants. To maintain proper functionality during property name obfuscation, these enum member names must be added to the trustlist. This practice continues to be applied when compiling the latest bytecode HAR modules.

2. During HAP/HSP/bytecode HAR module compilation with property name obfuscation enabled, variable names in initialization expressions of enum members are collected into the ‘enum’ trustlist. Example:

let outdoor = 1;
enum Test {
  member1,
  member2 = outdoor + member1 + 2
}

In the case of HAP/HSP module compilation, the content of the ‘enum’ trustlist is [‘outdoor’, ‘member1’]. In the case of bytecode HAR module compilation, the content is [‘outdoor’, ‘member1’, ‘member2’].

-extra-options strip-language-default

By default, the default language trustlist contains the names of APIs related to DOM, WebWorker, and ScriptHost in the TS system interfaces, as well as the names of Web APIs. If property names in the source code match these names, they will be retained.

To obfuscate these parts of the code, configure the -extra-options strip-language-default option.

You can determine the specific reduction range of APIs retained by default as follows:

Enable the -print-kept-names option and compare the differences in the lang field of the whitelist.json file when the -extra-options strip-language-default option is enabled and disabled. The difference represents the specific reduction range of the default language trustlist.

-extra-options strip-system-api-args

By default, the system API trustlist contains local variable names in system APIs and is effective for local variables in your source code by default. If property names in the source code match local variables in system APIs or if local variables in the source code match the system API trustlist, these property names and local variables will be retained.

To obfuscate these parts of the code, configure the -extra-options strip-system-api-args option.

The specific content of the system API trustlist can be viewed in the systemApiCache.json file through the ReservedLocalNames, ReservedPropertyNames, and ReservedGlobalNames fields. This file, located in the directory build/default/cache/{…}/release/obfuscation, records the interface and property names in the SDK, and source code with matching names will not be obfuscated.

You can determine the specific reduction range of the system API trustlist as follows:

Compare the differences in the ReservedLocalNames and ReservedPropertyNames fields of the systemApiCache.json file when the -extra-options strip-system-api-args option is enabled and disabled. The difference represents the specific reduction range of the system API trustlist. However, the content of the ReservedGlobalNames field will not change.

How to use -extra-options

To enable trustlist optimization, add the -extra-options prefix directly before the option in the obfuscation configuration file, with no additional content in between. You can enable either one option or both options, like shown in the following examples:

One option enabled:

-extra-options
strip-language-default

-extra-options strip-language-default

Both options enabled:

-extra-options strip-language-default, strip-system-api-args

-extra-options strip-language-default strip-system-api-args

-extra-options strip-language-default
-extra-options strip-system-api-args

-keep-parameter-names

Retains parameter names in declaration files for exported interfaces. The effect is as follows: - For functions and class member methods, if the function or method name is not confused, their parameter names are retained. - For class constructors, if the class name is not obfuscated, their parameter names in the constructors are retained.

NOTE

1. Parameter names that are not in the preceding scenarios (such as anonymous functions) will still be obfuscated.

2. Parameter names in source code files will be obfuscated regardless of this option.

-enable-lib-obfuscation-options

Merges obfuscation options of dependent modules into the obfuscation configuration of the current module.

Obfuscation configuration includes obfuscation options and retention options. - By default, the effective obfuscation configuration is the merged result of the current module’s obfuscation configuration and the dependent modules’ retention options. - When this option is configured, the effective obfuscation configuration is the merged result of the current module’s obfuscation configuration and the dependent modules’ obfuscation configuration.

For details about the merging logic, see Obfuscation Rule Merging Strategies.

-use-keep-in-source

Marks trustlists in .ts or .ets source code using the following two comment annotations (declaration files are not supported):

// @KeepSymbol: This annotation is used to mark names that should be retained. It is usually placed on the line above the relevant code to ensure that the name is not obfuscated when the code is compiled.

// @KeepAsConsumer: This annotation is used to mark names that should be retained. It is usually placed on the line above the relevant code to ensure that the name is not obfuscated when the code is compiled. In HAR/HSP modules, names marked with @KeepAsConsumer are also listed in the obfuscation.txt file. In HAP modules, @KeepAsConsumer works exactly like @KeepSymbol.

NOTE

Both types of markings are comments and the slashes (//) should not be removed.

The examples below use // @KeepSymbol, but // @KeepAsConsumer can be used in the same way for the same purposes.

Classes

You can mark the following elements in a class:

• Class declarations
• Constructors
• Fields and methods

Example

// Retain the class name and all member names.
// @KeepSymbol
class MyClass01 {
  prop01: string = "prop"; // MyClass01 and prop01 are not obfuscated.
}

// Use the constructor to retain the class name.
class MyClass02 {
  prop02: string = "prop";
  // @KeepSymbol
  constructor() {}; // MyClass02 is not obfuscated.
}

// Retain the class name and specified field and method names. MyClass03, prop03_1, and method03_2 in the class are not obfuscated.
class MyClass03 {
  // @KeepSymbol
  prop03_1: string = "prop";
  prop03_2: number = 1;
  constructor() {};

  method03_1(): void {};
  // @KeepSymbol
  method03_2(): void {};
}

Interfaces

You can mark the following elements in an interface:

• Interface declarations
• Fields and methods

Example

// Retain the interface name and all member names. MyInterface01, name01, and foo01 are not obfuscated.
// @KeepSymbol
interface MyInterface01 {
  name01: string;
  foo01(): void;
}

// Retain the interface name and specified field and method names. MyInterface02 and name02 are not obfuscated.
interface MyInterface02 {
  // @KeepSymbol
  name02: string;
  foo02(): void;
}

Enums

You can mark the following elements in an enum:

• Enum declarations
• Enum members

Example

// Retain the enum name and all member names. Color01, RED01, and BLUE01 are not obfuscated.
// @KeepSymbol
enum Color01 {
  RED01,
  BLUE01
}

// Retain the specified enum member name.
enum Color02 {
  RED02,
  // @KeepSymbol
  BLUE02 // Color02 and BLUE02 are not obfuscated.
}

Functions

Currently, function names can be marked.

Example

// Retain the function name. MyAdd is not obfuscated.
// @KeepSymbol
function MyAdd(a: number, b:number): number {
  return a + b;
}

Namespaces

Currently, namespace names can be marked.

Example

// Retain the namespace name and the member names directly exported internally. MyNameSpace and foo are not obfuscated.
// @KeepSymbol
namespace MyNameSpace {
  export function foo(){};
  function bar(){};
}

Global Variables

Currently, only global variables can be marked. Local variables cannot be marked.

Example

// Retain the marked variable name. myVal is not obfuscated.
// @KeepSymbol
const myVal = 1;

Trustlist Addition Rules

Marked names are added to the obfuscation trustlist based on the following rules. Names kept by KeepAsConsumer are also recorded in the obfuscation.txt file.

• If a name is at the top level or directly exported, it goes into -keep-global-name.

• If a name is directly exported, it also goes into -keep-property-name.

• If a name is a property, it goes into -keep-property-name.

• Local variable names are not added to the trustlist (they are not kept).

Example

// @KeepAsConsumer
export class MyClass {
  prop01: string = "prop";
}

In this example, MyClass is added to -keep-global-name and -keep-property-name, and prop01 is added to -keep-property-name. They are also written into the obfuscation.txt file.

-Scenarios Not Supported by -use-keep-in-source

String properties, numeric properties, and computed properties are not supported.

Example

const myMethodName = "myMethod";

// 11, aa, and myMethod are not added to the trustlist.
class MyClass01 {
  // @KeepSymbol
  11:11;
  // @KeepSymbol
  'aa':'aa';
  // @KeepSymbol
  [myMethodName](){}
}

// RED is not added to the trustlist.
enum MyEnum {
  // @KeepSymbol
  'RED',
  BLUE
}

Retention Options

Summary of Existing Retention Options

Function	Option
Retaining specified property names	-keep-property-name
Retaining specified top-level scope names or imported/exported element names	-keep-global-name
Retaining specified file/folder names	-keep-file-name
Retaining specified comments	-keep-comments
Retaining all names in specified declaration files	-keep-dts
Retaining all names in specified source code files	-keep

-keep-property-name

Retains the specified property names. Name wildcards are supported. The following configuration is used to retain properties named age, firstName, and lastName:

-keep-property-name
age
firstName
lastName

NOTE

1. This option takes effect when -enable-property-obfuscation is used.

2. The property trustlist applies globally. That is, if multiple properties with the same name exist in the code, they will not be confused as long as they match the names in the trustlist configured in -keep-property-name.

Which property names should be retained?

1. To ensure correct obfuscation, you are advised to retain all properties that are not accessed using dot notation. For example, object properties accessed via strings:

   var obj = {x0: 0, x1: 0, x2: 0};
   for (var i = 0; i <= 2; i++) {
       console.info(obj['x' + i]);  // x0, x1, and x2 should be retained.
   }

   Object.defineProperty(obj, 'y', {});  // y should be retained.
   Object.getOwnPropertyDescriptor(obj, 'y');  // y should be retained.
   console.info(obj.y);

   obj.s = 0;
   let key = 's';
   console.info(obj[key]);        // The variable value s corresponding to key should be retained.

   obj.t1 = 0;
   console.info(obj['t' + '1']);        // t1 should be retained.

For the following string literal property calls, you can choose to retain them.

   // Obfuscation configuration:
   // -enable-property-obfuscation
   // -enable-string-property-obfuscation

   obj.t = 0;
   console.info(obj['t']); // 't' will be correctly confused, and t can be retained.

   obj.['v'] = 0;
   console.info(obj['v']); // 'v' will be correctly confused, and v can be retained.

1. In the case of indirect exports, for example, export MyClass and let a = MyClass; export {a}, if you do not want to obfuscate property names, use retention options to retain them. For property names of directly exported classes or objects, such as name and age in the following example, if you do not want to obfuscate them, use retention options to retain them.

   export class MyClass {
       person = {name: "123", age: 100};
   }

1. If an API (for example, foo in the example) of the .so library needs to be used in the ArkTS/TS/JS file, manually retain the API name.

   import testNapi from 'library.so'
   testNapi.foo() // foo should be retained Example: -keep-property-name foo

1. Fields used in JSON parsing and object serialization should be retained.

   // Example JSON file structure (test.json):
   /*
   {
     "jsonProperty": "value",
     "otherProperty": "value2"
   }
   */

   const jsonData = fs.readFileSync('./test.json', 'utf8');
   let jsonObj = JSON.parse(jsonData);
   let jsonProp = jsonObj.jsonProperty; // jsonProperty should be retained.

   class jsonTest {
     prop1: string = '';
     prop2: number = 0
   }

   let obj = new jsonTest();
   const jsonStr = JSON.stringify(obj); // prop1 and prop2 will be obfuscated and should be retained.

1. Database-related fields should be manually retained. For example, properties in the database key-value pair type (ValuesBucket):

   const valueBucket: ValuesBucket = {
     'ID1': ID1, // ID1 should be retained.
     'NAME1': name, // NAME1 should be retained.
     'AGE1': age, // AGE1 should be retained.
     'SALARY1': salary // SALARY1 should be retained.
   }

1. When custom decorators are used on member variables, member methods, or parameters in the source code, and the intermediate product of source code compilation is a JS file (for example, compiling release-mode source code HAR or source code containing @ts-ignore or @ts-nocheck), the names of these member variables or member methods should be retained. This is because the names of these member variables/methods are hardcoded as string literals during conversion from TS syntax to standard JS syntax.

Example:

   class A {
     // 1. Member variable decorator
     @CustomDecoarter
     propertyName: string = ""   // propertyName should be retained.
     // 2. Member method decorator
     @MethodDecoarter
     methodName1(){} // methodName1 should be retained.
     // 3. Method parameter decorator
     methodName2(@ParamDecorator param: string): void { // methodName2 should be retained.
     }
   }

-keep-global-name

Retains the specified top-level scope names or imported/exported element names. Name wildcards are supported. You can perform the configuration as follows:

-keep-global-name
Person
printPersonName

Names exported from the namespace can also be retained using the -keep-global-name option. The following is an example:

export namespace Ns {
  export const age = 18; // -keep-global-name age: retains variable age.
  export function myFunc () {}; // -keep-global-name myFunc: retains function myFunc.
}

NOTE

The trustlist specified by -keep-global-name applies globally. That is, if multiple top-level scope names or exported names exist in the code, they will not be confused as long as they match the names in the trustlist configured in -keep-global-name.

Which top-level scope names should be retained?

1. In JS, variables in the top-level scope are properties of globalThis. If globalThis is used to access a global variable in the code, the variable name should be retained.

Example:

   var a = 0;
   console.info(globalThis.a);  // a should be retained.

   function foo(){}
   globalThis.foo();           // foo should be retained.

   var c = 0;
   console.info(c);             // c can be correctly obfuscated.

   function bar(){}
   bar();                      // bar can be correctly obfuscated.

   class MyClass {}
   let d = new MyClass();      // MyClass can be correctly obfuscated.

1. When importing API names from .so libraries using named imports, if both -enable-toplevel-obfuscation and -enable-export-obfuscation are configured, the API names should be manually retained.

   import { testNapi, testNapi1 as myNapi } from 'library.so' // testNapi and testNapi1 should be retained.

-keep-file-name

Retains the file/folder names. You do not need to specify the file name extension. Name wildcards are supported. Example:

-keep-file-name
index
entry

Which file names should be retained?

1. When require is used to import file paths, the path should be retained. This is because ArkTS does not support CommonJS syntax.

   const module1 = require('./file1')   // file1 should be retained.

1. For dynamically imported paths, since it is impossible to determine whether the parameter in the import function is a path, the path should be retained.

   const moduleName = './file2'         // The path name file2 corresponding to moduleName should be retained.
   const module2 = import(moduleName)

1. When dynamic routing is used for navigation, the path passed to the dynamic routing should be retained. Dynamic routing provides two modes: system routing table and custom routing table. If a custom routing table is used for redirection, the way to configure a trustlist is consistent with the second dynamic reference scenario. However, if the system routing table is used for redirection, the path corresponding to the pageSourceFile field in the resources/base/profile/route_map.json file of the module should be added to the trustlist.

     {
       "routerMap": [
         {
           "name": "PageOne",
           "pageSourceFile": "src/main/ets/pages/directory/PageOne.ets",  // The path should be retained.
           "buildFunction": "PageOneBuilder",
           "data": {
             "description" : "this is PageOne"
           }
         }
       ]
     }

-keep-comments

Retains the classes, functions, namespaces, enums, structs, interfaces, modules, types, and JsDoc comments above properties in the declaration files generated after compilation. Name wildcards are supported. For example, to retain the JSDoc comments above the Human class in the declaration file, use the following configuration:

-keep-comments
Human

NOTE

1. This option takes effect when -remove-comments is used.

2. If the classes, functions, namespaces, enums, structs, interfaces, modules, types, and property names in the declaration file generated after compilation are confused, the JsDoc comments above the element cannot be retained using -keep-comments. For example, when exportClass is configured in -keep-comments, if the class name is exportClass obfuscated, its JSDoc comments cannot be retained:

/*
 * @class exportClass
 */
export class exportClass {}

-keep-dts

Adds names (such as variable names, class names, and property names) in the .d.ts file of the specified file path into the trustlist of -keep-global-name and -keep-property-name. Note that filepath supports only absolute paths and can be specified as a directory. In this case, the names in all .d.ts files in the directory are retained.

-keep

Retains all names (such as variable names, class names, and property names) in the specified relative file path. filepath can be a file or directory. If it is a directory, the files in the directory and subdirectories are not obfuscated.

filepath must be a relative path. ./ and ../ are relative to the directory where the obfuscation configuration file is located. Path wildcards are supported.

-keep
./src/main/ets/fileName.ts   // Names in the fileName.ts file are not obfuscated.
../folder                    // Names in all the files under the folder directory and its subdirectories are not obfuscated.
../oh_modules/json5          // Names in all the files in the imported third-party library json5 are not obfuscated.

How to retain remote HAR packages in modules?

Method 1: Specify the exact path of the remote HAR package in the module-level oh_modules. This path is a symbolic link to the real path in the project-level oh_modules. When configuring the path in the module-level oh_modules as a trustlist, you should specify the bundle name or a directory following the bundle name to correctly link to the real directory path. Therefore, configuring only the parent directory name of the HAR package is not supported.

// Positive example:
-keep
./oh_modules/harName1         // Names in all the files under the harName1 directory and its subdirectories are not obfuscated.
./oh_modules/harName1/src     // Names in all the files under the src directory and its subdirectories are not obfuscated.
./oh_modules/folder/harName2  // Names in all the files under the harName2 directory and its subdirectories are not obfuscated.

// Negative example:
-keep
./oh_modules                  // To retain the HAR package in the module-level oh_modules, configuring the parent directory name of the HAR package is not supported.

Method 2: Specify the exact path of the remote HAR package in the project-level oh_modules. Since the file paths in the project-level oh_modules are all real paths, any path can be configured.

-keep
../oh_modules                  // Names in all the files under the project-level oh_modules and its subdirectories are not obfuscated.
../oh_modules/harName3          // Names in all the files under the harName3 directory and its subdirectories are not obfuscated.

The following figure shows the directory structure of module-level oh_moudles and project-level oh_modules in DevEco Studio.

NOTE

1. For files retained by -keep filepath, all exported names and their properties in the dependency chain of these files are also retained.

2. This option does not affect the capability provided by the -enable-filename-obfuscation option.

Wildcards Supported by Retention Options

Name Wildcards

The table below lists the name wildcards supported.

Wildcard	Description	Example
?	Matches any single character.	“AB?” matches “ABC”, but not “AB”.
*	Matches any number of characters.	“*AB*” matches “AB”, “aABb”, “cAB”, and “ABc”.

Use Example

Retain all property names that start with a.

-keep-property-name
a*

Retain all single-character property names.

-keep-property-name
?

Retain all property names.

-keep-property-name
*

Path Wildcards

The table below lists the path wildcards supported.

Wildcard	Description	Example
?	Matches any single character except the path separator (/).	”../a?” matches “../ab”, but not “../a/”.
*	Matches any number of characters except the path separator (/).	”../a*/c” matches “../ab/c”, but not “../ab/d/s/c”.
**	Matches any number of characters.	”../a**/c” matches “../ab/c” and “../ab/d/s/c”.
!	Negation. It can only be placed at the beginning of a path to exclude a certain case configured in the trustlist.	”!../a/b/c.ets” indicates all paths other than “../a/b/c.ets”.

Use Example

Retain the c.ets file in the ../a/b/ directory (excluding subdirectories).

-keep
../a/b/*/c.ets

Retain the c.ets file in the ../a/b/ directory and its subdirectories.

-keep
../a/b/**/c.ets

Retain all files except the c.ets file in the ../a/b/ directory. The exclamation mark (!) cannot be used alone. It can only be used to exclude existing cases in the trustlist.

-keep
../a/b/
!../a/b/c.ets

Retain all the files in the ../a/ directory (excluding subdirectories).

-keep
../a/*

Retain all the files in the ../a/ directory and its subdirectories.

-keep
../a/**

Retain all the files in the module.

-keep
./**

NOTE

1. In these options, the wildcards *, ?, and ! cannot be used for other meanings. Example:

class A {
  '*'= 1
}

-keep-property-name
*

In this example, * indicates any number of characters, and all property names are retained (not obfuscated). It does not mean that only the * property is retained.

2. In the -keep option, only the path format / is allowed. The path format \ or \ is not.

Obfuscation Rule Merging Strategies

During module compilation, the effective obfuscation rules are the merged result of the current module’s obfuscation rules and the dependent modules’ obfuscation rules. The specific rules are as follows:

Obfuscation rules of the current module Content of the obfuscation configuration file specified by the arkOptions.obfuscation.ruleOptions.files field in the current module’s configuration file build-profile.json5.

Obfuscation rules of dependent modules Depending on the type of dependent module, the obfuscation rules come from the following two sources:

• Local HAR/HSP modules Content of the obfuscation configuration file specified by the arkOptions.obfuscation.consumerFiles field in the module’s configuration file build-profile.json5.

• Remote HAR/HSP packages Content of the obfuscation.txt file in the remote HAR/HSP package.

If an HAP, HSP, or HAR is built, the final obfuscation rules are the merge of the following files: * ruleOptions.files attribute of the current module * consumerFiles attribute of the dependent local HSP * consumerFiles attribute of the dependent local HAR * obfuscation.txt files in the dependent remote HAR and remote HSP

If an HAR is built, the obfuscation.txt file in the generated remote HAR is the merge of the following files: * Its own consumerFiles attribute * consumerFiles attribute of the dependent local HSP * consumerFiles attribute of the dependent local HAR * obfuscation.txt files in the dependent remote HAR and remote HSP

If an HSP is built, the obfuscation.txt file in the generated remote HSP only contains its own consumerFiles attribute. If a HAP is built, no obfuscation.txt will be generated.

Obfuscation Rule Merging Logic

Obfuscation options: The OR operation is used for merging. If a switch option exists in any of the rule files being merged, it will be included in the final merged result. Retention options: When merging, for trustlist options, their content is the union of all.

• If the current module’s obfuscation configuration does not include the -enable-lib-obfuscation-options option, the merged result is the current module’s obfuscation rules and the retention options in the dependent modules’ obfuscation rules.

• If the current module’s obfuscation configuration includes the -enable-lib-obfuscation-options option, the merged result is the current module’s obfuscation rules and the dependent modules’ obfuscation rules.

When the obfuscation configuration file specified by consumerFiles contains the following obfuscation rules, these rules will be merged into the obfuscation.txt file of a remote HAR or remote HSP, whereas other obfuscation rules will not.

// Obfuscation options
-enable-property-obfuscation
-enable-string-property-obfuscation
-enable-toplevel-obfuscation
-compact
-remove-log

// Retention options
-keep-property-name
-keep-global-name

Precautions for Obfuscation in HSP and HAR

1. If the obfuscation configuration file specified by consumerFiles contains the above obfuscation options, when other modules depend on this module, these obfuscation options will be merged with the main module’s obfuscation rules, thereby affecting the main module. Therefore, you are not advised to configure obfuscation options in the consumer-rules.txt file. Instead, configure only retention options in the file.

2. If the -keep-dts option is added to the obfuscation configuration file specified by consumerFiles, it will be converted into -keep-global-name and -keep-property-name.

Mappings Between Obfuscation Options and Minimum SDK Versions

Obfuscation Option	Description	Minimum SDK Version
-disable-obfuscation	Disables obfuscation.	4.0.9.2
-enable-property-obfuscation	Enables property name obfuscation.	4.0.9.2
-enable-string-property-obfuscation	Enables obfuscation for string literal property names.	4.0.9.2
-enable-toplevel-obfuscation	Enables top-level scope name obfuscation.	4.0.9.2
-enable-filename-obfuscation	Enables file or folder name obfuscation for the HAR. Enables file or folder name obfuscation for the HAP/HSP.	4.1.5.3 5.0.0.19
-enable-export-obfuscation	Enables obfuscation for imported/exported names.	4.1.5.3
-compact	Removes unnecessary spaces and all line feeds.	4.0.9.2
-remove-log	Removes the expressions involving direct calls to the console. statement in specific scenarios.	4.0.9.2
-print-namecache	Saves the name cache to the specified file path.	4.0.9.2
-apply-namecache	Reuses the specified name cache file.	4.0.9.2
-remove-comments	Removes all comments in the file.	4.1.5.3
-keep-property-name	Retains property names.	4.0.9.2
-keep-global-name	Retains top-level scope names.	4.0.9.2
-keep-file-name	Retains file or folder names in the HAR. Retains file or folder names in the HAP/HSP.	4.1.5.3 5.0.0.19
-keep-dts	Retains the names in the .d.ts file in the specified path.	4.0.9.2
-keep-comments	Retains the classes, functions, namespaces, enums, structs, interfaces, modules, types, and JsDoc comments above properties in the declaration file generated after compilation.	4.1.5.3
-keep	Retains all names in the specified path.	5.0.0.18
Wildcard	The retention options of the name classes and path classes support wildcards.	5.0.0.24
-use-keep-in-source	Marks trustlists in source code by comments.	5.1.0.57

你可能感兴趣的鸿蒙文章

harmony 鸿蒙ArkTS

harmony 鸿蒙Configuring arkOptions in build-profile.json5

harmony 鸿蒙Asynchronous Lock

harmony 鸿蒙Ark Bytecode File Format

harmony 鸿蒙Naming Conventions for Ark Bytecode Functions

harmony 鸿蒙Ark Bytecode Fundamentals

harmony 鸿蒙Overview of Ark Bytecode

harmony 鸿蒙Shared Container

harmony 鸿蒙Asynchronous Waiting

harmony 鸿蒙ArkTS Cross-Language Interaction
