Time Picker Dialog Box (TimePickerDialog)

A time picker dialog box is a dialog box that allows users to select a time from the 24-hour range through scrolling.

NOTE

The APIs of this module are supported since API version 8. Updates will be marked with a superscript to indicate their earliest API version.

The functionality of this module depends on UI context. This means that the APIs of this module cannot be used where the UI context is unclear. For details, see UIContext.

Since API version 10, you can use the showTimePickerDialog API in UIContext, which ensures that the time picker dialog box is shown in the intended UI instance.

TimePickerDialog

show

static show(options?: TimePickerDialogOptions)

Shows a time picker dialog box.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

TimePickerDialogOptions

Inherited from TimePickerOptions.

System capability: SystemCapability.ArkUI.ArkUI.Full

Handling in the case of exceptions

Example

NOTE

For clarity in UI execution context, you are advised to use the showTimePickerDialog API in UIContext.

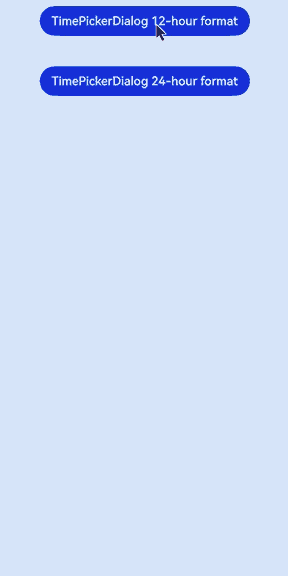

Example 1: Setting the Display Time

This example demonstrates how to set the display time using useMilitaryTime, dateTimeOptions, and format.

@Entry
@Component
struct TimePickerDialogExample {
  private selectTime: Date = new Date('2020-12-25T08:30:00')

  build() {
    Column() {
      Button("TimePickerDialog 12-hour format")
        .margin(20)
        .onClick(() => {
          TimePickerDialog.show({
            selected: this.selectTime,
            format: TimePickerFormat.HOUR_MINUTE,
            useMilitaryTime: false,
            dateTimeOptions: { hour: "numeric", minute: "2-digit" },
            onAccept: (value: TimePickerResult) => {
              // Set selectTime to the time when the OK button is clicked. In this way, when the dialog box is displayed again, the selected time is the time when the operation was confirmed last time.
              if (value.hour != undefined && value.minute != undefined) {
                this.selectTime.setHours(value.hour, value.minute)
                console.info("TimePickerDialog:onAccept()" + JSON.stringify(value))
              }
            },
            onCancel: () => {
              console.info("TimePickerDialog:onCancel()")
            },
            onChange: (value: TimePickerResult) => {
              console.info("TimePickerDialog:onChange()" + JSON.stringify(value))
            },
            onDidAppear: () => {
              console.info("TimePickerDialog:onDidAppear()")
            },
            onDidDisappear: () => {
              console.info("TimePickerDialog:onDidDisappear()")
            },
            onWillAppear: () => {
              console.info("TimePickerDialog:onWillAppear()")
            },
            onWillDisappear: () => {
              console.info("TimePickerDialog:onWillDisappear()")
            }
          })
        })
      Button("TimePickerDialog 24-hour format")
        .margin(20)
        .onClick(() => {
          TimePickerDialog.show({
            selected: this.selectTime,
            format: TimePickerFormat.HOUR_MINUTE_SECOND,
            useMilitaryTime: true,
            onAccept: (value: TimePickerResult) => {
              if (value.hour != undefined && value.minute != undefined) {
                this.selectTime.setHours(value.hour, value.minute)
                console.info("TimePickerDialog:onAccept()" + JSON.stringify(value))
              }
            },
          })
        })
    }.width('100%')
  }
}

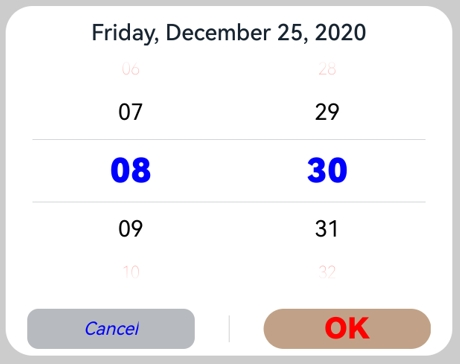

Example 2: Customizing the Style

In this example, disappearTextStyle, textStyle, selectedTextStyle, acceptButtonStyle, and cancelButtonStyle are configured to customize the text and button style.

// xxx.ets
@Entry
@Component
struct TimePickerDialogExample {
  private selectTime: Date = new Date('2020-12-25T08:30:00')

  build() {
    Column() {
      Button("TimePickerDialog 24-hour format")
        .margin(20)
        .onClick(() => {
          TimePickerDialog.show({
            disappearTextStyle: { color: '#297bec', font: { size: 15, weight: FontWeight.Lighter } },
            textStyle: { color: Color.Black, font: { size: 20, weight: FontWeight.Normal } },
            selectedTextStyle: { color: Color.Blue, font: { size: 30, weight: FontWeight.Bolder } },
            acceptButtonStyle: {
              type: ButtonType.Normal,
              style: ButtonStyleMode.NORMAL,
              role: ButtonRole.NORMAL,
              fontColor: 'rgb(81, 81, 216)',
              fontSize: '26fp',
              fontWeight: FontWeight.Bolder,
              fontStyle: FontStyle.Normal,
              fontFamily: 'sans-serif',
              backgroundColor: '#A6ACAF',
              borderRadius: 20
            },
            cancelButtonStyle: {
              type: ButtonType.Normal,
              style: ButtonStyleMode.NORMAL,
              role: ButtonRole.NORMAL,
              fontColor: Color.Blue,
              fontSize: '16fp',
              fontWeight: FontWeight.Normal,
              fontStyle: FontStyle.Italic,
              fontFamily: 'sans-serif',
              backgroundColor: '#50182431',
              borderRadius: 10
            },
            onAccept: (value: TimePickerResult) => {
              if (value.hour != undefined && value.minute != undefined) {
                this.selectTime.setHours(value.hour, value.minute)
                console.info("TimePickerDialog:onAccept()" + JSON.stringify(value))
              }
            }
          })
        })
    }.width('100%')
  }
}

Example 3: Configuring a Dialog Box in the Hover State

This example demonstrates how to set the layout area of a dialog box in hover mode on a foldable device.

@Entry
@Component
struct TimePickerDialogExample {
  private selectTime: Date = new Date('2020-12-25T08:30:00');

  build() {
    Column() {
      Button("TimePickerDialog 12-hour format")
        .margin(20)
        .onClick(() => {
          TimePickerDialog.show ({ // You are advised to use this.getUIContext().showTimePickerDialog().
            selected: this.selectTime,
            disappearTextStyle: { color: Color.Red, font: { size: 15, weight: FontWeight.Lighter } },
            textStyle: { color: Color.Black, font: { size: 20, weight: FontWeight.Normal } },
            selectedTextStyle: { color: Color.Blue, font: { size: 30, weight: FontWeight.Bolder } },
            onAccept: (value: TimePickerResult) => {
              // Set selectTime to the time when the OK button is clicked. In this way, when the dialog box is displayed again, the selected time is the time when the operation was confirmed last time.
              if (value.hour != undefined && value.minute != undefined) {
                this.selectTime.setHours(value.hour, value.minute);
                console.info("TimePickerDialog:onAccept()" + JSON.stringify(value));
              }
            },
            onCancel: () => {
              console.info("TimePickerDialog:onCancel()");
            },
            onChange: (value: TimePickerResult) => {
              console.info("TimePickerDialog:onChange()" + JSON.stringify(value));
            },
            onDidAppear: () => {
              console.info("TimePickerDialog:onDidAppear()");
            },
            onDidDisappear: () => {
              console.info("TimePickerDialog:onDidDisappear()");
            },
            onWillAppear: () => {
              console.info("TimePickerDialog:onWillAppear()");
            },
            onWillDisappear: () => {
              console.info("TimePickerDialog:onWillDisappear()");
            },
            enableHoverMode: true,
            hoverModeArea: HoverModeAreaType.TOP_SCREEN
          })
        })
    }.width('100%')
  }
}

Example 4: Setting the Dialog Box Position

This example demonstrates how to set the position of a dialog box using alignment and offset.

// xxx.ets
@Entry
@Component
struct TimePickerDialogExample {
  private selectTime: Date = new Date('2020-12-25T08:30:00')

  build() {
    Column() {
      Button("TimePickerDialog")
        .margin(20)
        .onClick(() => {
          TimePickerDialog.show({
            alignment: DialogAlignment.Center,
            offset: { dx: 20 , dy: 0 },
            onAccept: (value: TimePickerResult) => {
              // Set selectTime to the time when the OK button is clicked. In this way, when the dialog box is displayed again, the selected time is the time when the operation was confirmed last time.
              if (value.hour != undefined && value.minute != undefined) {
                this.selectTime.setHours(value.hour, value.minute)
                console.info("TimePickerDialog:onAccept()" + JSON.stringify(value))
              }
            }
          })
        })
    }.width('100%')
  }
}

Example 5: Setting the Mask Area

This example demonstrates how to set the mask area using maskRect.

// xxx.ets
@Entry
@Component
struct TimePickerDialogExample {
  private selectTime: Date = new Date('2020-12-25T08:30:00')

  build() {
    Column() {
      Button("TimePickerDialog")
        .margin(20)
        .onClick(() => {
          TimePickerDialog.show({
            maskRect: { x: 30, y: 60, width: '100%', height: '60%' },
            onAccept: (value: TimePickerResult) => {
              // Set selectTime to the time when the OK button is clicked. In this way, when the dialog box is displayed again, the selected time is the time when the operation was confirmed last time.
              if (value.hour != undefined && value.minute != undefined) {
                this.selectTime.setHours(value.hour, value.minute)
                console.info("TimePickerDialog:onAccept()" + JSON.stringify(value))
              }
            }
          })
        })
    }.width('100%')
  }
}

Example 6: Setting the Background

This example demonstrates how to set the mask area using maskRect.

// xxx.ets
@Entry
@Component
struct TimePickerDialogExample {
  private selectTime: Date = new Date('2020-12-25T08:30:00')

  build() {
    Column() {
      Button("TimePickerDialog")
        .margin(20)
        .onClick(() => {
          TimePickerDialog.show({
            backgroundColor: 'rgb(204, 226, 251)',
            backgroundBlurStyle: BlurStyle.NONE,
            shadow: ShadowStyle.OUTER_FLOATING_SM,
            onAccept: (value: TimePickerResult) => {
              // Set selectTime to the time when the OK button is clicked. In this way, when the dialog box is displayed again, the selected time is the time when the operation was confirmed last time.
              if (value.hour != undefined && value.minute != undefined) {
                this.selectTime.setHours(value.hour, value.minute)
                console.info("TimePickerDialog:onAccept()" + JSON.stringify(value))
              }
            }
          })
        })
    }.width('100%')
  }
}

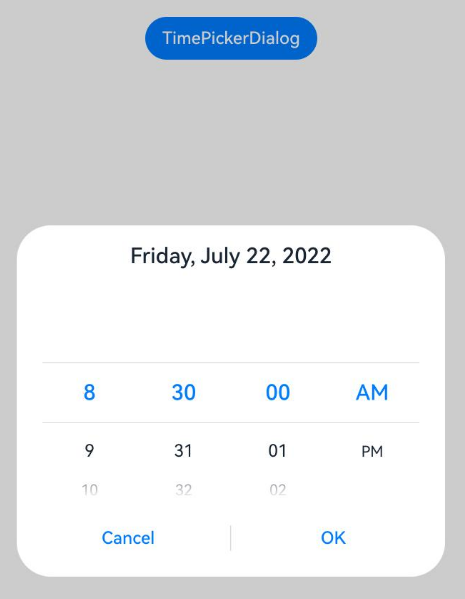

Example 7: Setting the Start Time

This example demonstrates how to set the start time for the time picker dialog box.

// xxx.ets
@Entry
@Component
struct TimePickerDialogExample {
  private selectTime: Date = new Date('2022-07-22T08:50:00')

  build() {
    Column() {
      Button("TimePickerDialog")
        .margin(20)
        .onClick(() => {
          TimePickerDialog.show({
            useMilitaryTime: false,
            selected: this.selectTime,
            format: TimePickerFormat.HOUR_MINUTE_SECOND,
            start: new Date('2022-07-22T08:30:00'),
            onAccept: (value: TimePickerResult) => {
              // Set selectTime to the time when the OK button is clicked. In this way, when the dialog box is displayed again, the selected time is the time when the operation was confirmed last time.
              if (value.hour != undefined && value.minute != undefined) {
                this.selectTime.setHours(value.hour, value.minute)
                console.info("TimePickerDialog:onAccept()" + JSON.stringify(value))
              }
            }
          })
        })
    }.width('100%')
  }
}

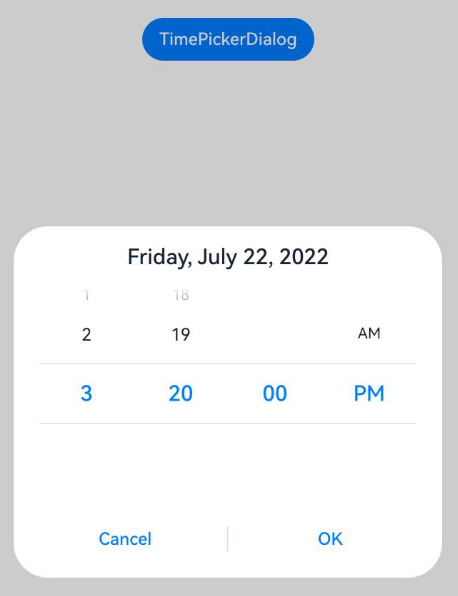

Example 8: Setting the End Time

This example demonstrates how to set the end time for the time picker dialog box.

// xxx.ets
@Entry
@Component
struct TimePickerDialogExample {
  private selectTime: Date = new Date('2022-07-22T08:50:00')

  build() {
    Column() {
      Button("TimePickerDialog")
        .margin(20)
        .onClick(() => {
          TimePickerDialog.show({
            useMilitaryTime: false,
            selected: this.selectTime,
            format: TimePickerFormat.HOUR_MINUTE_SECOND,
            end: new Date('2022-07-22T15:20:00'),
            onAccept: (value: TimePickerResult) => {
              // Set selectTime to the time when the OK button is clicked. In this way, when the dialog box is displayed again, the selected time is the time when the operation was confirmed last time.
              if (value.hour != undefined && value.minute != undefined) {
                this.selectTime.setHours(value.hour, value.minute)
                console.info("TimePickerDialog:onAccept()" + JSON.stringify(value))
              }
            }
          })
        })
    }.width('100%')
  }
}

Example 9: Enabling the AM/PM Indicator to Automatically Switch Based on the Hour in 12-hour Format

This example demonstrates how to enable AM/PM indicator to automatically switch based on the hour in 12-hour format using enableCascade.

// xxx.ets
@Entry
@Component
struct TimePickerDialogExample {
  private selectTime: Date = new Date('2022-07-22T08:00:00')

  build() {
    Column() {
      Button("TimePickerDialog")
        .margin(20)
        .onClick(() => {
          TimePickerDialog.show({
            useMilitaryTime: false,
            selected: this.selectTime,
            enableCascade:true,
            onAccept: (value: TimePickerResult) => {
              // Set selectTime to the time when the OK button is clicked. In this way, when the dialog box is displayed again, the selected time is the time when the operation was confirmed last time.
              if (value.hour != undefined && value.minute != undefined) {
                this.selectTime.setHours(value.hour, value.minute)
                console.info("TimePickerDialog:onAccept()" + JSON.stringify(value))
              }
            }
          })
        })
    }.width('100%')
  }
}
