Implementing Nested Scrolling

There may be times when you want to implement nested scrolling for the Web component. A typical use case is a page that contains multiple scrollable areas including the Web component, whose scrolling is intrinsically linked with the scroll positions in other areas. If you opt to embed a Web component in a scroll container (such as Scroll and List) for nested scrolling, use the NestedScrollMode enum of the ArkUI framework. You can specify the default nested scrolling mode through nestedScroll during creation of the Web component; this nested scrolling mode allows for dynamic changes.

nestedScroll is a NestedScrollOptions object that has two attributes: scrollForward and scrollBackward, both of which are NestedScrollMode enum values.

When a Web component is nested in multiple scrollable containers, the offset and speed values that are not consumed by the Web component are passed to the parent container that is closest to the Web component in the same direction so that the parent container can continue to scroll. A swipe gesture can initiate scrolling along either the x-axis or y-axis. If the finger moves between the x-axis and y-axis, the scrolling occurs along the axis where the offset or speed has a larger absolute value. If the absolute values of the offset or speed on the x-axis and y-axis are the same, the scrolling occurs in the direction of the scrollable component closest to the Web component.

NOTE

// xxx.ets
import { webview } from '@kit.ArkWeb';

@Entry
@Component
struct NestedScroll {
  private scrollerForScroll: Scroller = new Scroller();
  controller: webview.WebviewController = new webview.WebviewController();
  controller2: webview.WebviewController = new webview.WebviewController();
  // With NestedScrollMode set to SELF_ONLY, the parent component does not scroll when the component scrolling reaches the boundary.
  @State NestedScrollMode0: NestedScrollMode = NestedScrollMode.SELF_ONLY;
  // With NestedScrollMode set to SELF_FIRST, the component scrolls first, and when it hits the boundary, the parent component scrolls.
  @State NestedScrollMode1: NestedScrollMode = NestedScrollMode.SELF_FIRST;
  // With NestedScrollMode set to PARENT_FIRST, the parent component scrolls first, and when it hits the boundary, the component scrolls.
  @State NestedScrollMode2: NestedScrollMode = NestedScrollMode.PARENT_FIRST;
  // With NestedScrollMode set to PARALLEL, the component and its parent component scroll at the same time.
  @State NestedScrollMode3: NestedScrollMode = NestedScrollMode.PARALLEL;
  @State NestedScrollModeF: NestedScrollMode = NestedScrollMode.SELF_FIRST;
  @State NestedScrollModeB: NestedScrollMode = NestedScrollMode.SELF_FIRST;
  // Vertical scrolling.
  @State ScrollDirection: ScrollDirection = ScrollDirection.Vertical;

  build() {
    Flex() {
      Scroll(this.scrollerForScroll) {
        Column({ space: 5 }) {
          Row({}) {
            Text('Scroll Forward').fontSize(5)
            Button('SELF_ONLY').onClick((event: ClickEvent) => {
              this.NestedScrollModeF = this.NestedScrollMode0
            }).fontSize(5)
            Button('SELF_FIRST').onClick((event: ClickEvent) => {
              this.NestedScrollModeF = this.NestedScrollMode1
            }).fontSize(5)
            Button('PARENT_FIRST').onClick((event: ClickEvent) => {
              this.NestedScrollModeF = this.NestedScrollMode2
            }).fontSize(5)
            Button('PARALLEL').onClick((event: ClickEvent) => {
              this.NestedScrollModeF = this.NestedScrollMode3
            }).fontSize(5)
          }

          Row({}) {
            Text('Scroll Backward').fontSize(5)
            Button('SELF_ONLY').onClick((event: ClickEvent) => {
              this.NestedScrollModeB = this.NestedScrollMode0
            }).fontSize(5)
            Button('SELF_FIRST').onClick((event: ClickEvent) => {
              this.NestedScrollModeB = this.NestedScrollMode1
            }).fontSize(5)
            Button('PARENT_FIRST').onClick((event: ClickEvent) => {
              this.NestedScrollModeB = this.NestedScrollMode2
            }).fontSize(5)
            Button('PARALLEL').onClick((event: ClickEvent) => {
              this.NestedScrollModeB = this.NestedScrollMode3
            }).fontSize(5)
          }

          Text('Default mode: scrollForward ---' + `${this.NestedScrollModeF}`).fontSize(10)
          Text('Default mode: scrollBackward ---' + `${this.NestedScrollModeB}`).fontSize(10)

          Text("Scroll Area")
            .width("100%")
            .height("10%")
            .backgroundColor(0X330000FF)
            .fontSize(16)
            .textAlign(TextAlign.Center)
          Text("Scroll Area")
            .width("100%")
            .height("10%")
            .backgroundColor(0X330000FF)
            .fontSize(16)
            .textAlign(TextAlign.Center)
          Text("Scroll Area")
            .width("100%")
            .height("10%")
            .backgroundColor(0X330000FF)
            .fontSize(16)
            .textAlign(TextAlign.Center)

          Web({ src: "www.example.com", controller: this.controller })
            .nestedScroll({
              scrollForward: this.NestedScrollModeF,
              scrollBackward: this.NestedScrollModeB,
            })
            .height("40%")
            .width("100%")

          Text("Scroll Area")
            .width("100%")
            .height("20%")
            .backgroundColor(0X330000FF)
            .fontSize(16)
            .textAlign(TextAlign.Center)

          Text("Scroll Area")
            .width("100%")
            .height("20%")
            .backgroundColor(0X330000FF)
            .fontSize(16)
            .textAlign(TextAlign.Center)

          Web({ src: "www.example.com", controller: this.controller2 })
            .nestedScroll({
              scrollForward: this.NestedScrollModeF,
              scrollBackward: this.NestedScrollModeB,
            })
            .height("40%")
            .width("90%")

          Text("Scroll Area")
            .width("100%")
            .height("20%")
            .backgroundColor(0X330000FF)
            .fontSize(16)
            .textAlign(TextAlign.Center)

        }.width("95%").border({ width: 5 })
      }
      .width("100%").height("120%").border({ width: 5 }).scrollable(this.ScrollDirection)
    }.width('100%').height('100%').backgroundColor(0xDCDCDC).padding(20)
  }
}

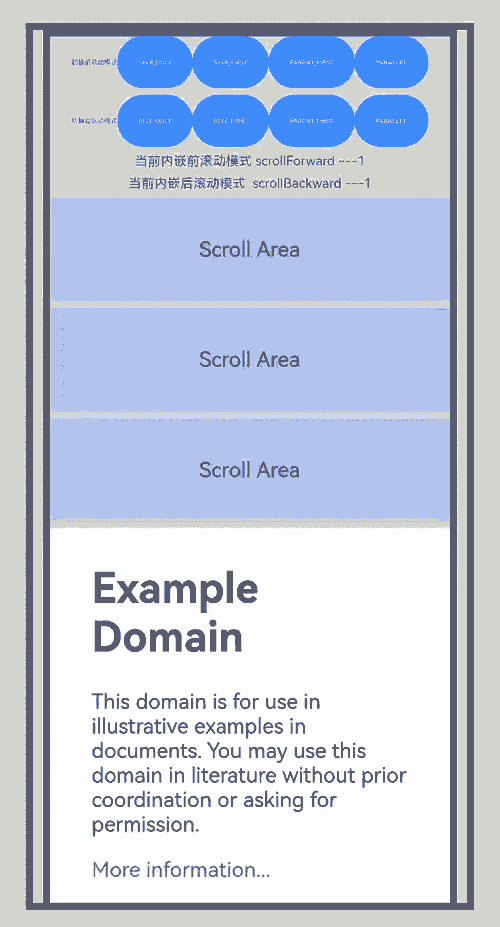

web-nested-scrolling
