Transition from Router to Navigation

This topic guides you through the transition from using APIs in the Router module to using the Navigation component. The Navigation component stands out for its wider range of animations, higher flexibility in one-time development for multi-device deployment, and more adaptable stack operations.

Page Structure

Pages managed by Router are @Entry decorated components, each of which must be declared in main_page.json.

// main_page.json
{
  "src": [
    "pages/Index",
    "pages/pageOne",
    "pages/pageTwo"
  ]
}

The following is an example of a page managed by Router.

// index.ets
import { router } from '@kit.ArkUI';

@Entry
@Component
struct Index {
  @State message: string = 'Hello World';

  build() {
    Row() {
      Column() {
        Text(this.message)
          .fontSize(50)
          .fontWeight(FontWeight.Bold)
        Button('router to pageOne', { stateEffect: true, type: ButtonType.Capsule })
          .width('80%')
          .height(40)
          .margin(20)
          .onClick(() => {
            router.pushUrl({
              url: 'pages/pageOne' // Target URL.
            }, router.RouterMode.Standard, (err) => {
              if (err) {
                console.error(`Invoke pushUrl failed, code is ${err.code}, message is ${err.message}`);
                return;
              }
              console.info('Invoke pushUrl succeeded.');
            })
          })
      }
      .width('100%')
    }
    .height('100%')
  }
}

// pageOne.ets
import { router } from '@kit.ArkUI';

@Entry
@Component
struct pageOne {
  @State message: string = 'This is pageOne';

  build() {
    Row() {
      Column() {
        Text(this.message)
          .fontSize(50)
          .fontWeight(FontWeight.Bold)
        Button('router back to Index', { stateEffect: true, type: ButtonType.Capsule })
          .width('80%')
          .height(40)
          .margin(20)
          .onClick(() => {
            router.back();
          })
      }
      .width('100%')
    }
    .height('100%')
  }
}

Pages using Navigation are divided into navigation pages and subpages. The navigation page, also known as a NavBar, is a child component of Navigation, while subpages are child components of NavDestination.

The following is an example of the navigation page using Navigation.

// index.ets
@Entry
@Component
struct Index {
  pathStack: NavPathStack = new NavPathStack()

  build() {
    Navigation(this.pathStack) {
      Column() {
        Button('Push PageOne', { stateEffect: true, type: ButtonType.Capsule })
          .width('80%')
          .height(40)
          .margin(20)
          .onClick(() => {
            this.pathStack.pushPathByName('pageOne', null)
          })
      }.width('100%').height('100%')
    }
    .title("Navigation")
    .mode(NavigationMode.Stack)
  }
}

The following is an example of a subpage using Navigation.

// PageOne.ets

@Builder
export function PageOneBuilder() {
  PageOne()
}

@Component
export struct PageOne {
  pathStack: NavPathStack = new NavPathStack()

  build() {
    NavDestination() {
      Column() {
        Button('Back to Home', { stateEffect: true, type: ButtonType.Capsule })
          .width('80%')
          .height(40)
          .margin(20)
          .onClick(() => {
            this.pathStack.clear()
          })
      }.width('100%').height('100%')
    }.title('PageOne')
    .onReady((context: NavDestinationContext) => {
      this.pathStack = context.pathStack
    })
  }
}

Each subpage also needs to be configured in the system configuration file route_map.json (see System Routing Table).

// Configure {"routerMap": "$profile:route_map"} in the project configuration file module.json5.
// route_map.json
{
  "routerMap": [
    {
      "name": "pageOne",
      "pageSourceFile": "src/main/ets/pages/PageOne.ets",
      "buildFunction": "PageOneBuilder",
      "data": {
        "description": "this is pageOne"
      }
    }
  ]
}

Route Operations

To use the Router for page operations, you must import the @ohos.router module.

import { router } from '@kit.ArkUI';

// push page
router.pushUrl({ url:"pages/pageOne", params: null })

// pop page
router.back({ url: "pages/pageOne" })

// replace page
router.replaceUrl({ url: "pages/pageOne" })

// clear all page
router.clear()

// Obtain the size of the page stack.
let size = router.getLength()

// Obtain the page state.
let pageState = router.getState()

To use the Navigation component for page operations, call APIs of the NavPathStack object. You need to first create a NavPathStack object and pass it into Navigation.

@Entry
@Component
struct Index {
  pathStack: NavPathStack = new NavPathStack()

  build() {
    // Set NavPathStack and pass it to Navigation.
    Navigation(this.pathStack) {
      // ...
    }.width('100%').height('100%')
    .title("Navigation")
    .mode(NavigationMode.Stack)
  }
}


// push page
this.pathStack.pushPath({ name: 'pageOne' })

// pop page
this.pathStack.pop()
this.pathStack.popToIndex(1)
this.pathStack.popToName('pageOne')

// replace page
this.pathStack.replacePath({ name: 'pageOne' })

// clear all page
this.pathStack.clear()

// Obtain the size of the page stack.
let size: number = this.pathStack.size()

// Remove all pages whose name is PageOne from the stack.
this.pathStack.removeByName("pageOne")

// Remove the page with the specified index.
this.pathStack.removeByIndexes([1, 3, 5])

// Obtain all page names in the stack.
this.pathStack.getAllPathName()

// Obtain the parameters of the page whose index is 1.
this.pathStack.getParamByIndex(1)

// Obtain the parameters of the PageOne page.
this.pathStack.getParamByName("pageOne")

// Obtain the index set of the PageOne page.
this.pathStack.getIndexByName("pageOne")
// ...

Router serves as a global module that can be used across any page, whereas Navigation operates as a component. If subpages within a Navigation component need to perform routing operations, they must access the NavPathStack object held by Navigation. The following are several methods to obtain the NavPathStack object:

Method 1: Use @Provide and @Consume (this method creates coupling and is not recommended).

// Navigation root container
@Entry
@Component
struct Index {
  // Navigation creates a NavPathStack object decorated by @Provide.
 @Provide('pathStack') pathStack: NavPathStack = new NavPathStack()

  build() {
    Navigation(this.pathStack) {
        // ...
    }
    .title("Navigation")
    .mode(NavigationMode.Stack)
  }
}

// Navigation subpage
@Component
export struct PageOne {
  // NavDestination obtains the NavPathStack object through @Consume.
  @Consume('pathStack') pathStack: NavPathStack;

  build() {
    NavDestination() {
      // ...
    }
    .title("PageOne")
  }
}

Method 2: Use the OnReady callback.

@Component
export struct PageOne {
  pathStack: NavPathStack = new NavPathStack()

  build() {
    NavDestination() {
      // ...
    }.title('PageOne')
    .onReady((context: NavDestinationContext) => {
      this.pathStack = context.pathStack
    })
  }
}

Method 3: Call the global AppStorage API.

@Entry
@Component
struct Index {
  pathStack: NavPathStack = new NavPathStack()

  // Set a NavPathStack object globally.
  aboutToAppear(): void {
     AppStorage.setOrCreate("PathStack", this.pathStack)
   }

  build() {
    Navigation(this.pathStack) {
      // ...
    }.title("Navigation")
    .mode(NavigationMode.Stack)
  }
}

// Navigation subpage
@Component
export struct PageOne {
  // The subpage obtains the global NavPathStack object.
  pathStack: NavPathStack = AppStorage.get("PathStack") as NavPathStack

  build() {
    NavDestination() {
      // ...
    }
    .title("PageOne")
  }
}

Method 4: Call the custom component query API. For details, see queryNavigationInfo.

// Custom component on the subpage
@Component
struct CustomNode {
  pathStack: NavPathStack = new NavPathStack()

  aboutToAppear() {
    // query navigation info
    let navigationInfo: NavigationInfo = this.queryNavigationInfo() as NavigationInfo
    this.pathStack = navigationInfo.pathStack;
  }

  build() {
    Row() {
      Button('Go to PageTwo')
        .onClick(() => {
          this.pathStack.pushPath({ name: 'pageTwo' })
        })
    }
  }
}

Lifecycle

The lifecycle of a Router page is managed by universal methods within the @Entry page, which mainly includes the following lifecycle events:

// Callback after the page is created and mounted to the tree
aboutToAppear(): void {
}

// Callback before the page is destroyed and unmounted
aboutToDisappear(): void {
}

// Callback when the page is displayed
onPageShow(): void {
}

// Callback when the page is hidden
onPageHide(): void {
}

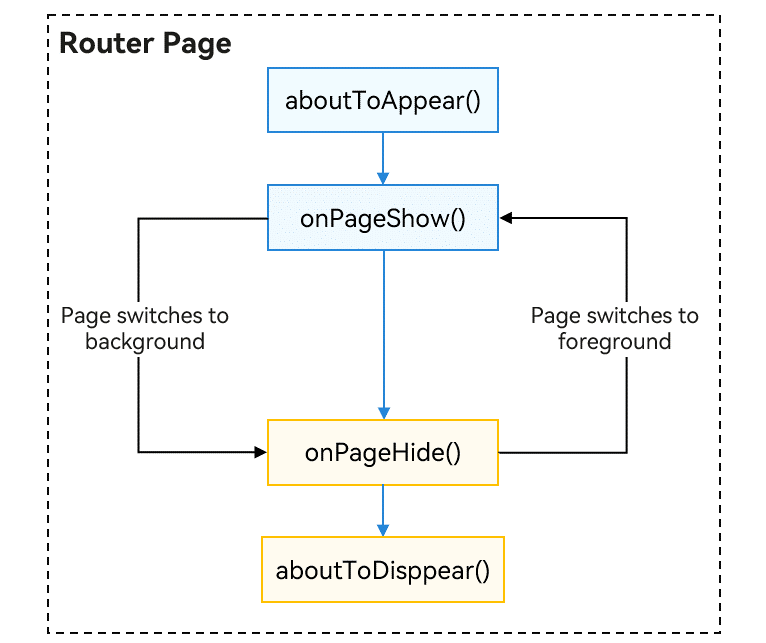

The sequence of these lifecycle events is illustrated in the figure below.

Navigation, as a routing container, hosts its lifecycle within the NavDestination component and exposes lifecycle events as component events. For details about the lifecycle, see Page Lifecycle.

@Component
struct PageOne {
  aboutToDisappear() {
  }

  aboutToAppear() {
  }

  build() {
    NavDestination() {
      // ...
    }
    .onWillAppear(() => {
    })
    .onAppear(() => {
    })
    .onWillShow(() => {
    })
    .onShown(() => {
    })
    .onWillHide(() => {
    })
    .onHidden(() => {
    })
    .onWillDisappear(() => {
    })
    .onDisAppear(() => {
    })
  }
}

Transition Animation

Both Router and Navigation offer built-in system transition animations as well as the capability to customize these animations.

For Router, custom page transition animations are implemented through the universal method pageTransition(). For details, see Page Transition Animation.

For Navigation, a routing container component, page transition animations are essentially property animations between components. You can custom page transition animations through the customNavContentTransition event in Navigation. For details, see Customizing a Transition. (Note: Dialog-type pages currently do not have transition animations.)

Shared Element Transition

To animate shared elements during page transitions with Router, use the sharedTransition API. For details, see Shared Element Transition (sharedTransition).

To animate shared elements during page transitions with Navigation, use the geometryTransition API. For details, see Defining a Shared Element Transition.

Cross-Package Routing

To implement cross-package routing, with Router, use named routes.

1. In the HAR or HSP you want to navigate to, name the @Entry decorated custom component in EntryOptions.

   // library/src/main/ets/pages/Index.ets
   // library is the new custom name of the shared package.
   @Entry({ routeName: 'myPage' })
   @Component
   export struct MyComponent {
     build() {
       Row() {
         Column() {
           Text('Library Page')
             .fontSize(50)
             .fontWeight(FontWeight.Bold)
         }
         .width('100%')
       }
       .height('100%')
     }
   }

1. When the configuration is successful, import the named route page to the page from which you want to navigate and perform the navigation.

   import { router } from '@kit.ArkUI';
   import { BusinessError } from '@kit.BasicServicesKit';
   import('library/src/main/ets/pages/Index');  // Import the named route page from the library of the shared package.

   @Entry
   @Component
   struct Index {
     build() {
       Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
         Text('Hello World')
           .fontSize(50)
           .fontWeight(FontWeight.Bold)
           .margin({ top: 20 })
           .backgroundColor('#ccc')
           .onClick(() => { // Click to go to a page in another shared package.
             try {
               router.pushNamedRoute({
                 name: 'myPage',
                 params: {
                   data1: 'message',
                   data2: {
                     data3: [123, 456, 789]
                   }
                 }
               })
             } catch (err) {
               let message = (err as BusinessError).message
               let code = (err as BusinessError).code
               console.error(`pushNamedRoute failed, code is ${code}, message is ${message}`);
             }
           })
       }
       .width('100%')
       .height('100%')
     }
   }

As a routing component, Navigation natively supports cross-package navigation.

1. Develop a custom component in the HSP (HAR) that you want to navigate to, and declare it as export.

   @Component
   export struct PageInHSP {
     build() {
       NavDestination() {
           // ...
       }
     }
   }

1. Export the component in the index.ets file of the HSP (HAR).

   export { PageInHSP } from "./src/main/ets/pages/PageInHSP"

1. After configuring the project dependencies for the HSP (HAR), import the custom component into mainPage and add it to pageMap for normal use.

   // 1. Import the cross-package route page.
   import { PageInHSP } from 'library/src/main/ets/pages/PageInHSP'

   @Entry
   @Component
   struct mainPage {
    pageStack: NavPathStack = new NavPathStack()

    @Builder pageMap(name: string) {
      if (name === 'PageInHSP') {
   	    // 2. Define the route mapping table.
   	    PageInHSP()
      }
    }

    build() {
      Navigation(this.pageStack) {
        Button("Push HSP Page")
          .onClick(() => {
            // 3. Navigate to the page in the HSP.
            this.pageStack.pushPath({ name: "PageInHSP" });
          })
      }
      .mode(NavigationMode.Stack)
      .navDestination(this.pageMap)
    }
   }

In the above approaches, static dependencies are used for cross-package routing. In large-scale projects, inter-module development generally requires decoupling, which relies on the capability of dynamic routing.

Dynamic Routing

Dynamic routing facilitates the reuse of service modules across different products (HAPs) and ensures module decoupling by using a routing table for transitions without interdependencies. It also streamlines the expansion and integration of routing features.

Business modules expose a set of pages for various scenarios, which are managed through a unified routing table. Products can register the routing tables of the required modules.

Key Benefits of Dynamic Routing

1. Route definitions can include not only the URL for navigation but also a variety of extended configurations, such as default orientation (landscape or portrait) and authentication requirements, for unified handling during routing.
2. Each route is assigned a name, allowing navigation by name rather than by file path, which simplifies the routing process.
3. Pages can be loaded using dynamic import (lazy loading), preventing the initial page from loading a large amount of code that could cause lag.

Implementing Dynamic Routing with Router

1. Definition: Add new routes to the routing table -> Bind page files to route names (decorators) -> Associate loading functions with page files (dynamic import functions).

2. Registration: Register routes (inject the routing table of dependent modules as needed in the entry ability).

3. Navigation: Check the routing table (for registered route names) -> Pre-routing hooks (dynamic import for page loading) -> Perform routing -> Post-routing hooks (common processing, such as tracking).

Implementing Dynamic Routing with Navigation

Solution 1: Custom Routing Table

The basic implementation is similar to the aforementioned dynamic routing with Router. 1. Create a custom routing management module, which is depended on by all modules providing routing pages. 2. When constructing the Navigation component, inject NavPathStack into the routing management module, which then encapsulates NavPathStack and provides routing capabilities. 3. Instead of providing components directly, each routing page offers a build function wrapped with @build, which is then further encapsulated with WrappedBuilder for global encapsulation. 4. Each routing page registers its module name, route name, and the WrappedBuilder-encapsulated build function into the routing management module. 5. The routing management module completes dynamic imports and route transitions as needed.

Solution 2: System Routing Table

Since API version 12, Navigation supports a system-wide cross-module routing table solution, which centralizes routing management through individual router_map.json files in each service module (HSP/HAR). When a route transition is initiated using NavPathStack, the system automatically performs dynamic module loading, component construction, and completes the route transition, achieving module decoupling at the development level. For details, see System Routing Table.

Lifecycle Listening

You can use the observer to register for lifecycle events with the Router. For details about the APIs, see observer.on(‘routerPageUpdate’).

import { uiObserver } from '@kit.ArkUI';

function callBackFunc(info: uiObserver.RouterPageInfo) {
    console.info("RouterPageInfo is : " + JSON.stringify(info))
}

// used in ability context.
uiObserver.on('routerPageUpdate', this.context, callBackFunc);

// used in UIContext.
uiObserver.on('routerPageUpdate', this.getUIContext(), callBackFunc);

A registered callback is invoked when there is a change in the page state. You can obtain relevant page information such as the page name, index, path, and lifecycle status through the parameters passed to the callback.

Navigation also allows you to register for lifecycle events through the observer.

// EntryAbility.ets
import { BusinessError } from '@kit.BasicServicesKit';
import { UIObserver } from '@kit.ArkUI';

export default class EntryAbility extends UIAbility {
  // ...
  onWindowStageCreate(windowStage: window.WindowStage): void {
    // ...
    windowStage.getMainWindow((err: BusinessError, data) => {
      // ...
      let windowClass = data;
      // Obtain a UIContext instance.
      let uiContext: UIContext = windowClass.getUIContext();
      // Obtain a UIObserver instance.
      let uiObserver : UIObserver = uiContext.getUIObserver();
      // Register a listener for DevNavigation state updates.
      uiObserver.on("navDestinationUpdate",(info) => {
        // NavDestinationState.ON_SHOWN = 0, NavDestinationState.ON_HIDE = 1
        if (info.state == 0) {
          // Actions to perform when the NavDestination component is shown.
          console.info('page ON_SHOWN:' + info.name.toString());
        }
      })
    })
  }
}

Page Information Query

To achieve decoupling between custom components and their containing pages, a global API for querying page information is provided within custom components.

With Router, you can use the queryRouterPageInfo API to query information about the current page where the custom component resides. The return value includes the following properties, with pageId being the unique ID for the page.

import { uiObserver } from '@kit.ArkUI';

// Custom component on the page
@Component
struct MyComponent {
  aboutToAppear() {
    let info: uiObserver.RouterPageInfo|undefined = this.queryRouterPageInfo();
  }

  build() {
    // ...
  }
}

With Navigation, you can use the queryNavDestinationInfo API to query information about the current page where the custom component resides. The return value includes the following properties, with navDestinationId being the unique ID for the page.

import { uiObserver } from '@kit.ArkUI';

@Component
export struct NavDestinationExample {
  build() {
    NavDestination() {
      MyComponent()
    }
  }
}

@Component
struct MyComponent {
  navDesInfo: uiObserver.NavDestinationInfo|undefined

  aboutToAppear() {
    this.navDesInfo = this.queryNavDestinationInfo();
    console.log('get navDestinationInfo: ' + JSON.stringify(this.navDesInfo))
  }

  build() {
    // ...
  }
}

Route Interception

Router does not natively provide route interception, so you must implement it by creating custom routing APIs for redirection and interception logic.

Navigation provides the setInterception API for setting callbacks to intercept page navigation. For details, see Route Interception.

你可能感兴趣的鸿蒙文章

harmony 鸿蒙ArkUI

harmony 鸿蒙Atomic Service Full Screen Launch Component (FullScreenLaunchComponent)

harmony 鸿蒙Arc Button (ArcButton)

harmony 鸿蒙Animation Smoothing

harmony 鸿蒙Animation Overview

harmony 鸿蒙Frame Animation (ohos.animator)

harmony 鸿蒙Implementing Property Animation

harmony 鸿蒙Property Animation Overview

harmony 鸿蒙Dialog Box Overview

harmony 鸿蒙Blur Effect
