AtomicServiceSearch

AtomicServiceSearch allows you to customize the default search area, customizable selection area, and function area (a maximum of two).

NOTE

This component is supported since API version 18. Updates will be marked with a superscript to indicate their earliest API version.

Modules to Import

import { AtomicServiceSearch } from '@kit.ArkUI';

AtomicServiceSearch

AtomicServiceSearch({
  value?: ResourceStr,
  placeholder?: ResourceStr,
  controller?: SearchController,
  select?: SelectParams,
  search?: SearchParams,
  operation?: OperationParams,
})

Atomic service API: This API can be used in atomic services since API version 18.

Decorator: @Component

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name Type Mandatory Decorator Description
value ResourceStr No @Prop Text input in the search text box. The default value is an empty string.
placeholder ResourceStr No @Prop Default prompt text displayed in the search box. The default value is Search.

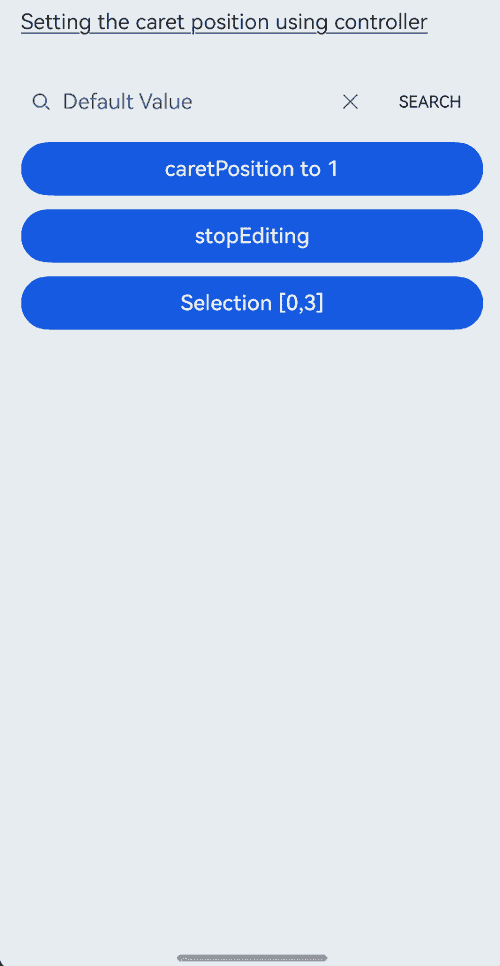

controller SearchController No - Native Search component controller, which is used to set the position of the input cursor and exit the editing state. The default value is undefined.
select SelectParams No @Prop Content, event, and style of the selection area. The default value is undefined.
search SearchParams No @Prop Events and styles supported by the search area. The default value is undefined.
operation OperationParams No - Function setting items on the right of the selection area. The default value is undefined.

SelectParams

Provides optional attributes for the selection area.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Name Type Mandatory Description
options Array<SelectOption> No Value of an option in the drop-down menu. The default value is undefined.
selected number No Index of the initially selected item in the drop-down list box. The index of the first item is 0. If this attribute is not set, the default value -1 is used, indicating that the option is not selected.
selectValue ResourceStr No Text content of the drop-down list button itself. The default value is undefined.
onSelect OnSelectCallback No Callback invoked when an item in the drop-down list box is selected. The default value is undefined.
menuItemContentModifier ContentModifier<MenuItemConfiguration> No Content modifier to apply to the drop-down list box.
modifier: content modifier. You need a custom class to implement the ContentModifier API. The default value is undefined.
divider Optional&lt;DividerOptions&gt; |null No Divider options.
1. If DividerOptions is set, the divider is displayed in the configured style. Default value: {strokeWidth: ‘1px’, color: ‘#33182431’}
2. If this parameter is set to null, the divider is not displayed.
3. If the value of strokeWidth is too larger, the divider may overlap the text. The divider extends both upwards and downwards from the bottom of each item.
4. The default values for startMargin and endMargin are consistent with the style of the divider when the divider attribute is not set. If the sum of startMargin and endMargin is equal to the value of optionWidth, the divider is not displayed. If the sum of startMargin and endMargin exceeds the value of optionWidth, the divider line is displayed in the default style.
font Font No Text font of the drop-down list button. Default value: {size: $r(‘sys.float.ohos_id_text_size_body1’)}
fontColor ResourceColor No Font color of the selected option in the drop-down list box. Default value: {fontColor: $r(‘sys.color.ohos_id_color_text_primary’)}
selectedOptionBgColor ResourceColor No Background color of the selected option in the drop-down list box. Default value: $r(‘sys.color.ohos_id_color_component_activated’) with the opacity of $r(‘sys.color.ohos_id_alpha_highlight_bg’)
selectedOptionFont Font No Text font of the selected option in the drop-down list box. Default value: {size: $r(‘sys.color.ohos_id_text_size_body1’), weight: FontWeight.Regular}
selectedOptionFontColor ResourceColor No Font color of the selected option in the drop-down list box. Default value: $r(‘sys.color.ohos_id_color_text_primary_activated’)
optionBgColor ResourceColor No Background color of an option in the drop-down list box. Default value: Color.Transparent
optionFont Font No Text font of options in the drop-down list box. Default value: {size: $r(‘sys.float.ohos_id_text_size_body1’), weight: FontWeight.Regular}
optionFontColor ResourceColor No Font color of an option in the drop-down list box. Default value: $r(‘sys.color.ohos_id_color_text_primary’)
optionWidth Dimension |OptionWidthMode No Option width in the drop-down list box. This attribute cannot be set in percentage. OptionWidthMode is of the enum type and it determines whether the drop-down list box inherits the width of the drop-down list button. If an invalid value or a value less than the minimum width of 56 vp is set, the attribute does not take effect, and the option width uses the default value, which is two columns.
optionHeight Dimension No Maximum height for the option in the drop-down list box. This attribute cannot be set in percentage. The default maximum height is 80% of the available height of the screen. The maximum height set cannot exceed the default maximum height.
space Length No Spacing between the text and arrow of an option. Default value: 8
arrowPosition ArrowPosition No Alignment between the text and arrow of an option. Default value: ArrowPosition.END
menuAlign MenuAlignParams No Alignment between the drop-down list button and the drop-down list box. Default value: {alignType: MenuAlignType.START, offset: {dx: 0, dy: 0}}
menuBackgroundColor ResourceColor No Background color of the drop-down list box. Default value: Color.Transparent
menuBackgroundBlurStyle BlurStyle No Background blur style of the drop-down list box. Default value: BlurStyle.COMPONENT_ULTRA_THICK

SearchParams

Sets optional attributes for the search area.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Name Type Mandatory Description
searchKey ResourceStr No Search key used to find a unique search component. Default value: undefined
componentBackgroundColor ResourceColor No Background color of a component. Default value: $r(‘sys.color.ohos_id_color_text_field_sub_bg’)
pressedBackgroundColor ResourceColor No Background color of the pressed component. Default value: $r(‘sys.color.ohos_id_color_click_effect’)
searchButton SearchButtonParams No Search button located next to the search text box. Clicking the search button triggers both onSubmit and onClick callbacks.
- value: Text on the search button located next to the search text box.
- option: Font of the search text box. Default value: {fontSize: ‘16fp’, fontColor: ‘#ff3f97e9’}
placeholderColor ResourceColor No Placeholder text color. Default value: $r(‘sys.color.ohos_id_color_text_secondary’)
placeholderFont Font No Placeholder text style, including the font size, font weight, font family, and font style. Default value: {size: $r(‘sys_float.ohos_id_text_size_body1’)}
textFont Font No Style of the text entered in the search box, including the font size, font width, font family, and font style. Currently, only the default font family is supported. Default value: {size: $r(‘sys_float.ohos_id_text_size_body1’)}

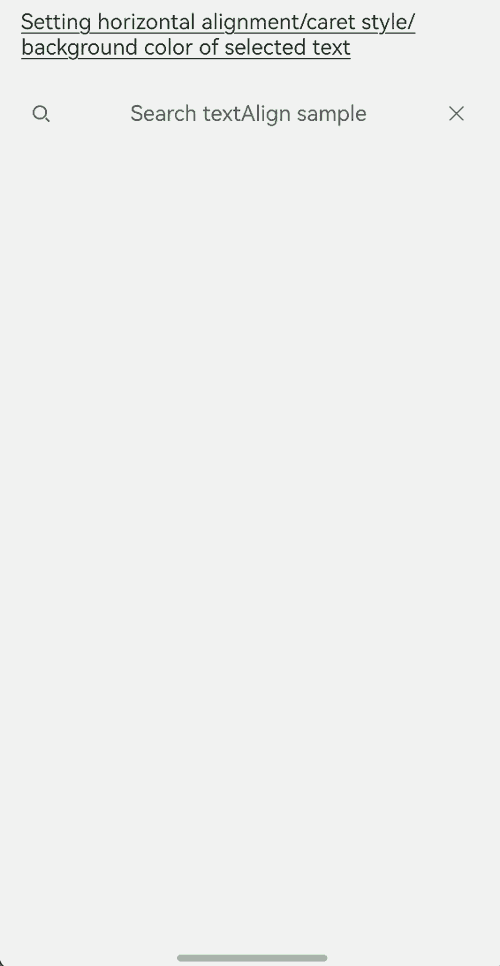

textAlign TextAlign No Text alignment mode in the search text box. Default value: TextAlign.Start
copyOptions CopyOptions No Whether copy and paste is allowed. Default value: CopyOptions.LocalDevice
searchIcon IconOptions |SymbolGlyphModifier No Style of the search icon on the left.
Default value in light mode: {size: ‘16vp’, color: ‘#99182431’, src:’ ‘}
Default value in dark mode: {size: ‘16vp’, color: ‘#99ffffff’, src:’ ‘}
cancelIcon IconOptions No Style of the cancel button on the right. Default value: {style: CancelButtonStyle.INPUT, icon: {size: ‘16vp’, color: ‘#99ffffff’, src:’ ‘}}
When style is set to CancelButtonStyle.CONSTANT, the cancel button is displayed in a default style.
fontColor ResourceColor No Font color of the input text. Default value: $r(‘sys.color.ohos_id_color_text_secondary’)
caretStyle CaretStyle No Pointer style. Default value: {width: ‘1.5vp’, color: ‘#007DFF’}
enableKeyboardOnFocus boolean No Whether to enable the input method when the search component obtains focus in a way other than clicking. Default value: true
hideSelectionMenu boolean No Whether to hide the system text selection menu.
true: The system text selection menu does not appear under the following circumstances: clicking the text box cursor, long-pressing the text box, double-tapping the text box, triple-tapping the text box, or right-clicking the text box. false: The system text selection menu appears under the following circumstances: clicking the text box cursor, long-pressing the text box, double-tapping the text box, triple-tapping the text box, or right-clicking the text box. Default value: false
type SearchType No Text box type. Default value: SearchType.Normal
maxLength number No Maximum number of characters in the text input. By default, there is no maximum number of characters. When the maximum number is reached, no more characters can be entered. Default value: -1

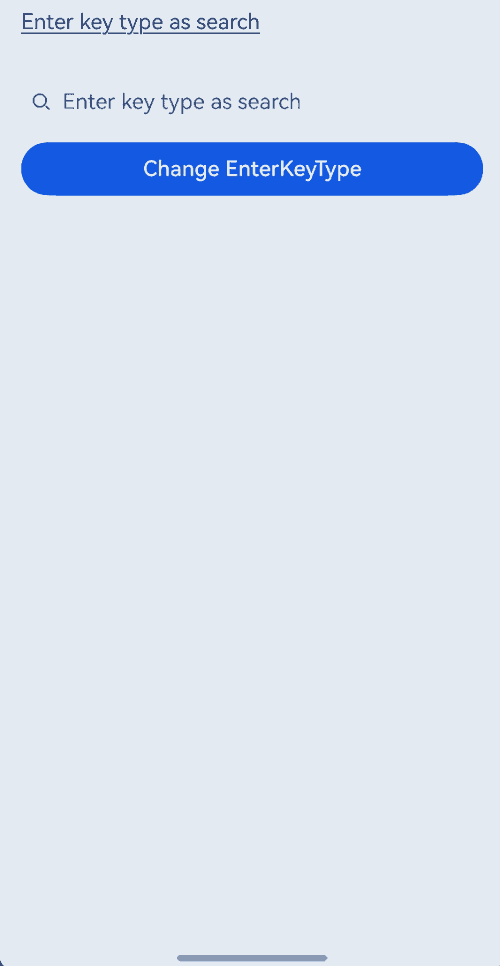

enterKeyType EnterKeyType No Type of the Enter key. Default value: EnterKeyType.Search
decoration TextDecorationOptions No Text decorative line options. Default value: {type: TextDecorationType.None, color: Color.Black, style: TextDecorationStyle.SOLID}
letterSpacing number |string |Resource No Letter spacing. If the value specified is a percentage or 0, the default value is used. If the value specified is a negative value, the text is compressed. A negative value too small may result in the text being compressed to 0 and no content being displayed. Default value: 0
fontFeature ResourceStr No Font feature, for example, monospaced digits.
Format: normal |<feature-tag-value>
Syntax for <feature-tag-value>: <string> [ <integer> |on |off ]
There can be multiple <feature-tag-value> values, which are separated by commas (,).

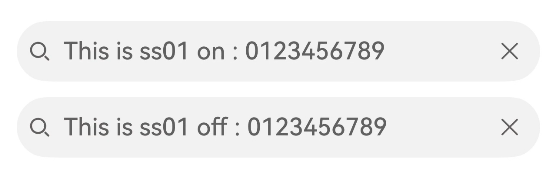

For example, the input format for monospaced digits is “ss01” on. The default value is undefined.
selectedBackgroundColor ResourceColor No Background color of the selected text. By default, a 20% opacity is applied.

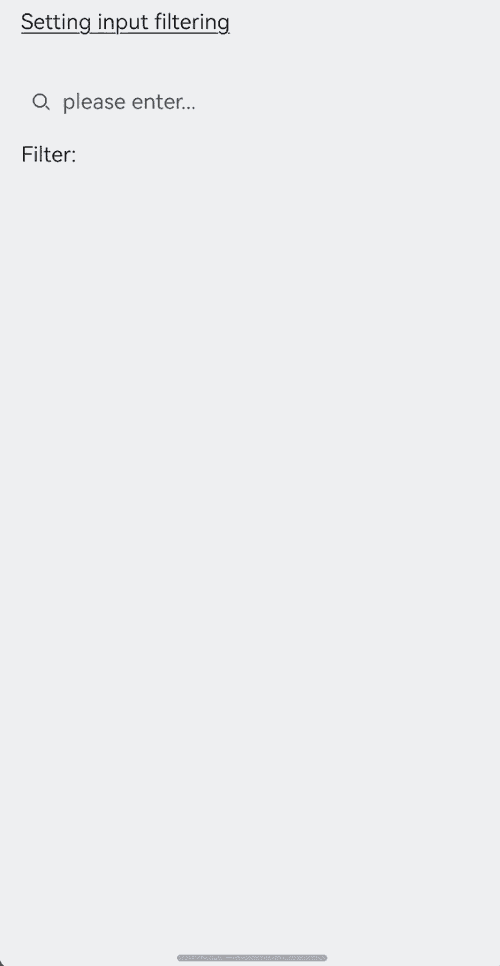

inputFilter InputFilterParams No Regular expression for input filtering. Only inputs that comply with the regular expression can be displayed. Other inputs are filtered out. The specified regular expression can match single characters, but not strings. The default value is undefined.
- value: regular expression.
- error: Filtered-out content to return when regular expression matching fails.
textIndent Dimension No Indent of the first line text. Default value: 0
minFontSize number |string |Resource No Minimum font size. For the setting to take effect, this attribute must be used together with maxFontSize or layout constraint settings. The default value is undefined.
maxFontSize number |string |Resource No Maximum font size. For the setting to take effect, this attribute must be used together with minFontSize or layout constraint settings. The default value is undefined.

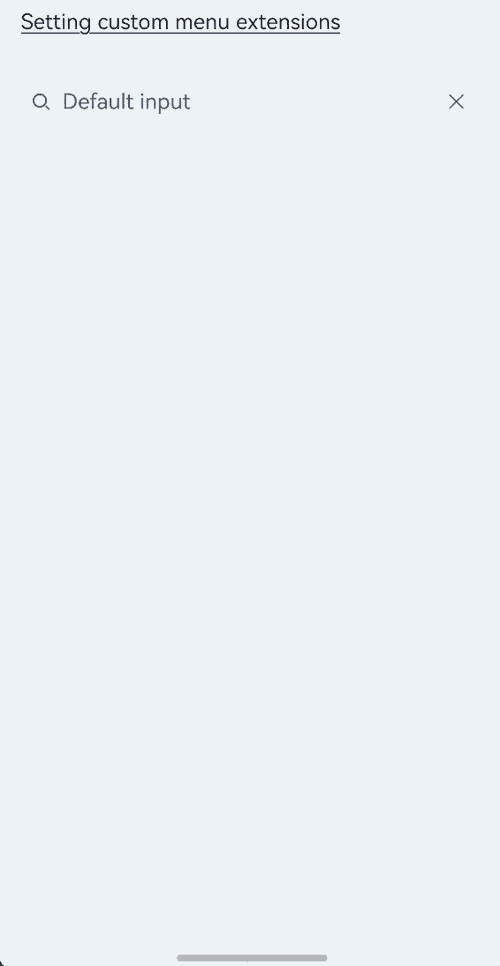

editMenuOptions EditMenuOptions No Extended options of the custom context menu on selection, including the text content, icon, and callback. The default value is undefined.
enablePreviewText boolean No Whether to enable preview text. Default value: true
Preview text of the input method should be enabled. Preview text is in a temporary state and does not support text interception. As such, it does not trigger onWillInsert and onDidInsert callbacks.
enableHapticFeedback boolean No Whether to enable haptic feedback. Default value: true

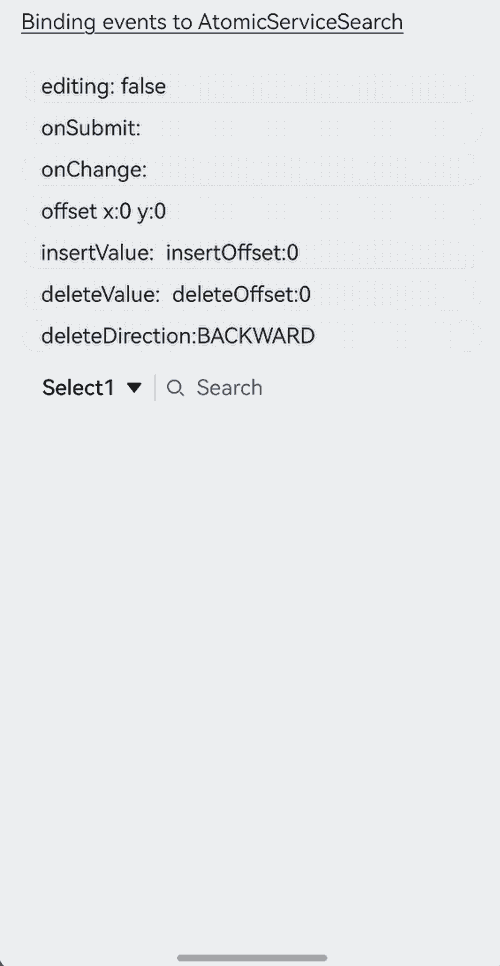

onSubmit Callback&lt;string&gt; |SearchSubmitCallback No Callback triggered when users click the search icon or the search button, or touch the search button on a soft keyboard. The default value is undefined.
onChange EditableTextOnChangeCallback No Callback triggered when the content in the text box changes. The default value is undefined.
onCopy Callback&lt;string&gt; No Callback triggered when a copy operation is performed. The default value is undefined.
onCut Callback&lt;string&gt; No Callback triggered when a cut operation is performed. The default value is undefined.
onPaste OnPasteCallback No Callback triggered when a paste operation is performed. The default value is undefined.
onTextSelectionChange OnTextSelectionChangeCallback No Callback triggered when the position of the text selection changes or when the cursor position changes during the editing state. The default value is undefined.
onContentScroll OnContentScrollCallback No Callback triggered when the text content is scrolled. The default value is undefined.
onEditChange Callback&lt;boolean&gt; No Callback triggered when the input status changes. If a cursor is displayed, that is, the value of isEditing is true, the text box is in the editing state. The default value is undefined.
onWillInsert Callback&lt;InsertValue, boolean&gt; No Callback triggered when text is about to be inserted. The default value is undefined.
onDidInsert Callback&lt;InsertValue&gt; No Callback triggered when text is inserted. The default value is undefined.
onWillDelete Callback&lt;DeleteValue, boolean&gt; No Callback triggered when text is about to be deleted. The default value is undefined.
onDidDelete Callback&lt;DeleteValue&gt; No Callback triggered when text is deleted. The default value is undefined.

OperationParams

Sets initialization parameters of the function area.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Name Type Mandatory Description
auxiliaryItem OperationOption No Auxiliary item on the right of the search area. The default value is undefined.
independentItem OperationOption No Independent item on the right of the search area. The default value is undefined.

InputFilterParams

Sets regular expression for input filtering.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Name Type Mandatory Description
inputFilterValue ResourceStr Yes Regular expression.
error Callback&lt;string&gt; No Callback used to return the filtered-out content when regular expression matching fails. The default value is undefined.

SearchButtonParams

Sets the search button located next to the search text box.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Name Type Mandatory Description
searchButtonValue ResourceStr Yes Text on the search button located next to the search text box.
options SearchButtonOptions No Font of the search text box. Default value: {fontSize: ‘16fp’,fontColor: ‘#ff3f97e9’}

MenuAlignParams

Sets the alignment between the drop-down list button and the drop-down list box.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Name Type Mandatory Description
alignType MenuAlignType Yes Alignment type. Default value: MenuAlignType.START
offset Offset No Offset of the drop-down list box relative to the drop-down list button after alignment based on the alignment type. Default value: {dx: 0, dy: 0}

OnSelectCallback

type OnSelectCallback = (index: number, selectValue: string) => void

Called when an item in the drop-down list box is selected.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name Type Mandatory Description
index number Yes Index of the selected option.
selectValue string Yes Value of the selected option.

OnPasteCallback

type OnPasteCallback = (pasteValue: string, event: PasteEvent) => void

Called when a paste operation is performed.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name Type Mandatory Description
pasteValue string Yes Text to be pasted.
event PasteEvent Yes Custom paste event.

OnTextSelectionChangeCallback

type OnTextSelectionChangeCallback = (selectionStart: number, selectionEnd: number) => void

Called when the position of the text selection changes or when the cursor position changes during the editing state.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name Type Mandatory Description
selectionStart number Yes Start position of the text to be selected.
selectionEnd number Yes End position of the text to be selected.

OnContentScrollCallback

type OnContentScrollCallback = (totalOffsetX: number, totalOffsetY: number) => void

Called when the text content is scrolled.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name Type Mandatory Description
totalOffsetX number Yes X coordinate offset of the text in the content area.
totalOffsetY number Yes Y coordinate offset of the text in the content area.

Examples

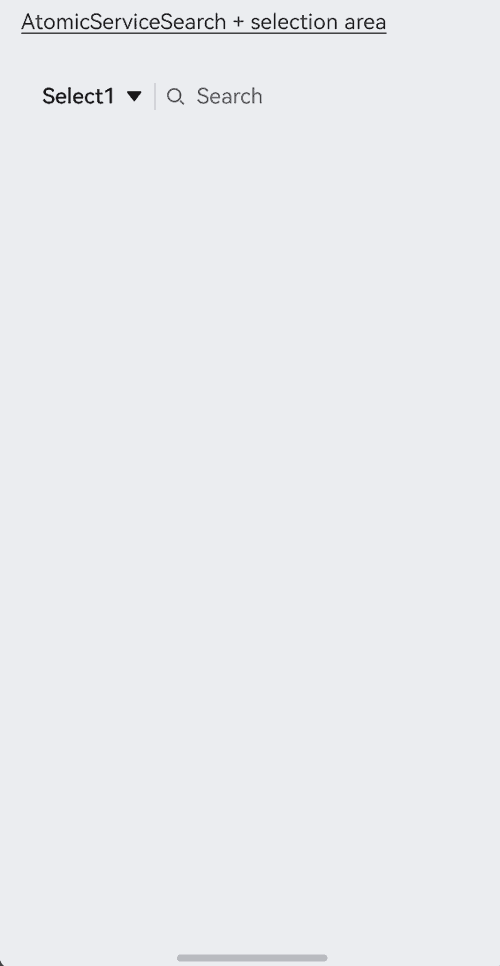

Example 1: Adding a Selection Area to AtomicServiceSearch

This example demonstrates how to use the select parameter to add a selection area on the left to the AtomicServiceSearch component.

import { AtomicServiceSearch } from '@kit.ArkUI';

@Entry
@Component
struct Index {
  build() {
    Column({ space: 6 }) {
      Text('AtomicServiceSearch + selection area').alignSelf(ItemAlign.Start).decoration({
        type: TextDecorationType.Underline,
        color: Color.Black,
        style: TextDecorationStyle.SOLID
      }).margin({top:20, bottom: 20})

      AtomicServiceSearch({
        select: {
          options: [
            { value: 'Select1', icon: $r("app.media.sweep") }, // Custom resource
            { value: 'Select2', icon: $r("app.media.sweep") }, // Custom resource
            { value: 'Select3', icon: $r("app.media.sweep") }, // Custom resource
            { value: 'Select4', icon: $r("app.media.sweep") } // Custom resource
          ],
          selected: -1,
          selectValue: 'Select1',
          onSelect: (index: number, selectValue: string) => { // Custom event
            if (index === 0) {
              this.alert(`index: ${index}, selectValue: ${selectValue}`);
            } else if (index === 1) {
              this.alert(`index: ${index}, selectValue: ${selectValue}`);
            } else if (index === 2) {
              this.alert(`index: ${index}, selectValue: ${selectValue}`);
            } else if (index === 3) {
              this.alert(`index: ${index}, selectValue: ${selectValue}`);
            }
          },
        }
      })
    }.padding({ left: 16, right: 16 })
  }

  private alert(message: string): void {
    AlertDialog.show({
      message: message
    })
  }
}

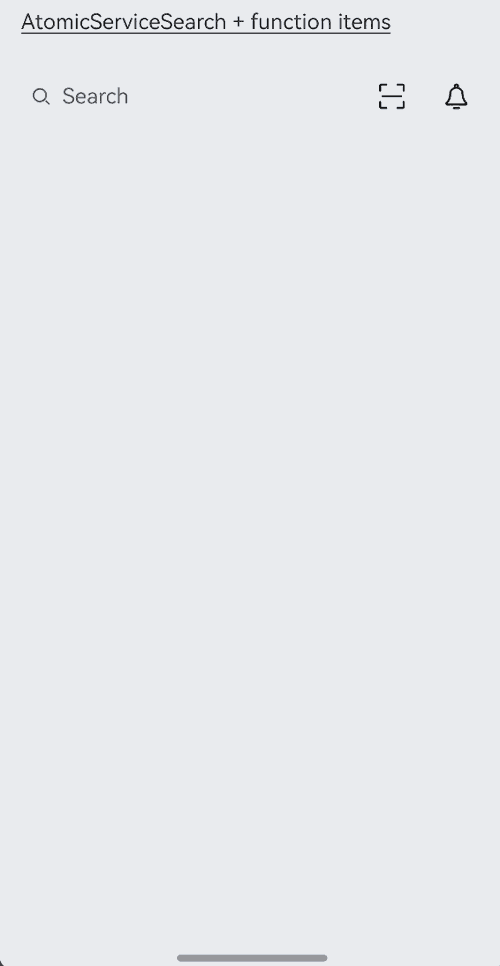

Example 2: Adding a Function Item to AtomicServiceSearch

This example demonstrates how to use the operation parameter to add a function item on the right to the AtomicServiceSearch component.

import { AtomicServiceSearch } from '@kit.ArkUI';

@Entry
@Component
struct Index {
  build() {
    Column({ space: 6 }) {
      Text('AtomicServiceSearch + function items').alignSelf(ItemAlign.Start).decoration({
        type: TextDecorationType.Underline,
        color: Color.Black,
        style: TextDecorationStyle.SOLID
      }).margin({top:20, bottom: 20})

      AtomicServiceSearch({
        operation: {
          // Auxiliary item of the Search component.
          auxiliaryItem: {
            value: $r("app.media.sweep"), // Custom resource
            action: () => {
              this.alert('Scan'); // Custom event
            }
          },
          // Independent item of the Search component.
          independentItem: {
            value: $r("app.media.dingding"), // Custom resource
            action: () => {
              this.alert('Notifications'); // Custom event
            }
          }
        }
      })
    }.padding({ left: 16, right: 16 })
  }

  private alert(message: string): void {
    AlertDialog.show({
      message: message
    })
  }
}

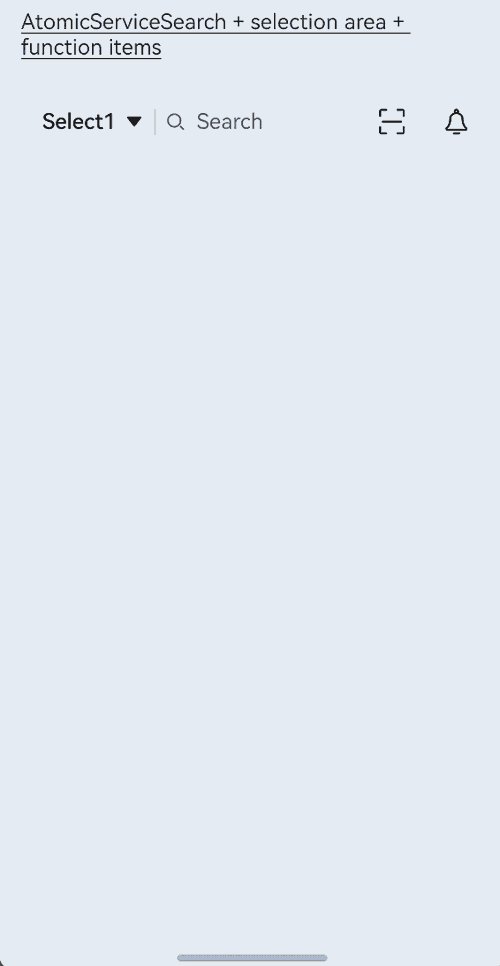

Example 3: Adding a Selection Area and Function Item to AtomicServiceSearch

This example demonstrates how to add the selection area and function items on the left and right to the AtomicServiceSearch component.

import { AtomicServiceSearch } from '@kit.ArkUI';

@Entry
@Component
struct Index {
  build() {
    Column({ space: 6 }) {
      Text('AtomicServiceSearch + selection area + function items').alignSelf(ItemAlign.Start).decoration({
        type: TextDecorationType.Underline,
        color: Color.Black,
        style: TextDecorationStyle.SOLID
      }).margin({top:20, bottom: 20})

      AtomicServiceSearch({
        select: {
          options: [
            { value: 'Select1', icon: $r("app.media.sweep") }, // Custom resource
            { value: 'Select2', icon: $r("app.media.sweep") }, // Custom resource
            { value: 'Select3', icon: $r("app.media.sweep") }, // Custom resource
            { value: 'Select4', icon: $r("app.media.sweep") } // Custom resource
          ],
          selected: -1,
          selectValue: 'Select1',
          onSelect: (index: number, selectValue:string) => {
            if (index === 0) {
              this.alert(`index: ${index}, selectValue: ${selectValue}`);
            } else if (index === 1) {
              this.alert(`index: ${index}, selectValue: ${selectValue}`);
            } else if (index === 2) {
              this.alert(`index: ${index}, selectValue: ${selectValue}`);
            } else if (index === 3) {
              this.alert(`index: ${index}, selectValue: ${selectValue}`);
            }
          },
        },
        operation: {
          auxiliaryItem: {
            value: $r("app.media.sweep"), // Custom resource
            action: () => {
              this.alert('Scan'); // Custom event
            }
          },
          independentItem: {
            value: $r("app.media.dingding"), // Custom resource
            action: () => {
              this.alert('Notifications'); // Custom event
            }
          }
        }
      })
    }.padding({ left: 16, right: 16 })
  }

  private alert(message: string): void {
    AlertDialog.show({
      message: message
    })
  }
}

Example 4: Binding the Search Callback Events to AtomicServiceSearch

This example demonstrates how to use the onWillInsert, onDidInsert, onWillDelete, and onDidDelete APIs to implement insert and delete operations. The onSubmit API is used to submit content in the search area. The onChange API is used to listen for the content changes in the search area.

import { AtomicServiceSearch } from '@kit.ArkUI';

@Entry
@Component
struct Index {
  @State insertValue: string = "";
  @State deleteValue: string = "";
  @State insertOffset: number = 0;
  @State deleteOffset: number = 0;
  @State deleteDirection: number = 0;
  @State startIndex: number = 0;
  @State endIndex: number = 0;
  @State offsetX: number = 0;
  @State offsetY: number = 0;
  @State changeValue: string = '';
  @State value: string = 'false';
  @State submitValue: string = '';
  @State text: string = 'Search editMenuOptions';

  build() {
    Column({ space: 6 }) {
      Text('Binding events to AtomicServiceSearch').alignSelf(ItemAlign.Start).decoration({
        type: TextDecorationType.Underline,
        color: Color.Black,
        style: TextDecorationStyle.SOLID
      }).margin({top:20, bottom: 20})

      Column({ space: 6 }) {
        Text('editing: ' + this.value).width('100%').height(25).borderRadius(15).padding({ left: 15 })
          .backgroundColor('rgba(0, 0, 0, 0.1)').maxLines(1).textOverflow({ overflow: TextOverflow.MARQUEE });
        Text('onSubmit:' + this.submitValue).width('100%').height(25).borderRadius(15).padding({ left: 15 })
          .backgroundColor('rgba(0, 0, 0, 0.1)').maxLines(1).textOverflow({ overflow: TextOverflow.MARQUEE });
        Text('onChange:' + this.changeValue).width('100%').height(25).borderRadius(15).padding({ left: 15 })
          .backgroundColor('rgba(0, 0, 0, 0.1)').maxLines(1).textOverflow({ overflow: TextOverflow.MARQUEE });
        Text('offset x:' + this.offsetX + ' y:' + this.offsetY).width('100%').height(25).borderRadius(15).padding({ left: 15 })
          .backgroundColor('rgba(0, 0, 0, 0.1)').maxLines(1).textOverflow({ overflow: TextOverflow.MARQUEE });
        Text("insertValue:" + this.insertValue + "  insertOffset:" + this.insertOffset).width('100%').height(25)
          .borderRadius(15).padding({ left: 15 }).backgroundColor('rgba(0, 0, 0, 0.1)').maxLines(1)
          .textOverflow({ overflow: TextOverflow.MARQUEE });
        Text("deleteValue:" + this.deleteValue + "  deleteOffset:" + this.deleteOffset).width('100%').height(25)
          .borderRadius(15).padding({ left: 15 }).backgroundColor('rgba(0, 0, 0, 0.1)').maxLines(1)
          .textOverflow({ overflow: TextOverflow.MARQUEE });
        Text("deleteDirection:" + (this.deleteDirection == 0 ? "BACKWARD" : "FORWARD")).width('100%').height(25)
          .borderRadius(15).padding({ left: 15 }).backgroundColor('rgba(0, 0, 0, 0.1)').maxLines(1)
          .textOverflow({ overflow: TextOverflow.MARQUEE });
        AtomicServiceSearch({
          select: {
            options: [
              { value: 'Select1', icon: $r("app.media.sweep") },
              { value: 'Select2', icon: $r("app.media.sweep") },
              { value: 'Select3', icon: $r("app.media.sweep") },
              { value: 'Select4', icon: $r("app.media.sweep") }
            ],
            selected: -1,
            selectValue: 'Select1',
            onSelect: (index: number) => {
              if (index === 0) {
                this.alert('Select1');
              } else if (index === 1) {
                this.alert('Select2');
              } else if (index === 2) {
                this.alert('Select3');
              } else if (index === 3) {
                this.alert('Select4');
              }
            },
          },
          search: {
            onSubmit: (value: string) => {
              this.submitValue = value
            },
            onChange: (value: string) => {
              this.changeValue = value
            },
            onCopy: () => {
              this.alert('onCopy');
            },
            onCut: () => {
              this.alert('onCut');
            },
            onPaste: () => {
              this.alert('onPaste');
            },
            onTextSelectionChange: (selectionStart: number, selectionEnd: number) => {
              this.startIndex = selectionStart
              this.endIndex = selectionEnd
            },
            onContentScroll: (totalOffsetX: number, totalOffsetY: number) => {
              this.offsetX = totalOffsetX
              this.offsetY = totalOffsetY
            },
            onEditChange: (data: boolean) => {
              this.value = data ? 'true' : 'false'
            },
            onWillInsert: (info: InsertValue) => {
              this.insertValue = info.insertValue
              return true;
            },
            onDidInsert: (info: InsertValue) => {
              this.insertOffset = info.insertOffset
            },
            onWillDelete: (info: DeleteValue) => {
              this.deleteValue = info.deleteValue
              info.direction
              return true;
            },
            onDidDelete: (info: DeleteValue) => {
              this.deleteOffset = info.deleteOffset
              this.deleteDirection = info.direction
            }
          }
        })
      }
    }.padding({ left: 16, right: 16 })
  }

  private alert(message: string): void {
    AlertDialog.show({
      message: message
    })
  }
}

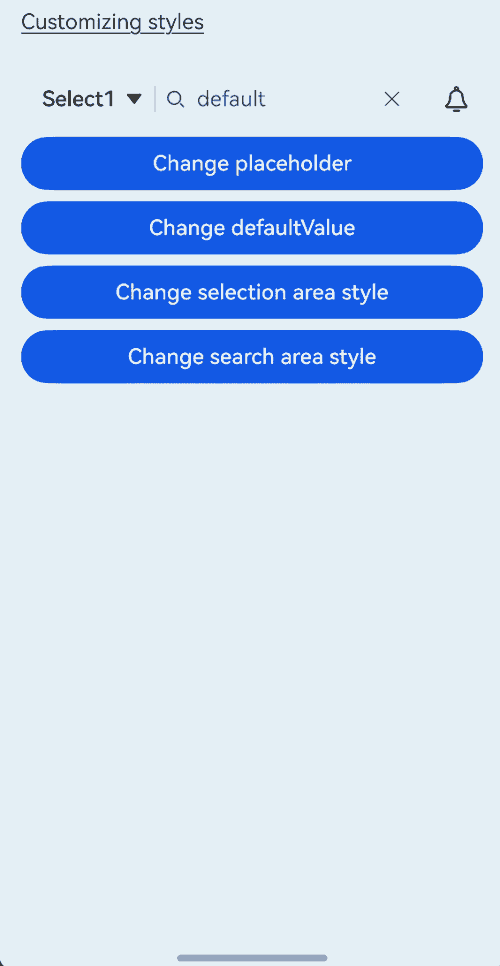

Example 5: Customizing the Style of AtomicServiceSearch

This example demonstrates how to use the search, select, value, and placeholder parameters to customize the style of the AtomicServiceSearch component.

import { AtomicServiceSearch } from '@kit.ArkUI';

@Entry
@Component
struct Index {
  @State private placeholder: string = 'Type to Search...';
  @State private defaultValue: string = 'default';
  @State private search?: SearchParams = {};
  @State private select?: SelectParams = {
    options: [
      { value: 'Select1', icon: $r("app.media.sweep") },
      { value: 'Select2', icon: $r("app.media.sweep") },
      { value: 'Select3', icon: $r("app.media.sweep") },
      { value: 'Select4', icon: $r("app.media.sweep") }
    ],
    selected: -1,
    selectValue: 'Select1',
    onSelect: (index: number) => {
      if (index === 0) {
        this.alert('Select1');
      } else if (index === 1) {
        this.alert('Select2');
      } else if (index === 2) {
        this.alert('Select3');
      } else if (index === 3) {
        this.alert('Select4');
      }
    }
  };

  build() {
    Column({ space: 8 }) {
      Text('Customizing styles').alignSelf(ItemAlign.Start).decoration({
        type: TextDecorationType.Underline,
        color: Color.Black,
        style: TextDecorationStyle.SOLID
      }).margin({ top: 20, bottom: 20 })

      AtomicServiceSearch({
        value: this.defaultValue,
        placeholder: this.placeholder,
        select: this.select,
        search: this.search,
        operation: {
          independentItem: {
            value: $r(`app.media.dingding`),
            action: () => {
              this.alert('Notification');
            }
          }
        }
      })
      Button("Change placeholder")
        .width('100%')
        .type(ButtonType.Normal)
        .borderRadius(20)
        .onClick(() => {
          if (this.placeholder === 'Search...') {
            this.placeholder = 'Type to Search...';
          } else {
            this.placeholder = 'Search...';
          }
        });
      Button("Change defaultValue")
        .width('100%')
        .type(ButtonType.Normal)
        .borderRadius(20)
        .onClick(() => {
          if (this.defaultValue === 'value') {
            this.defaultValue = 'defaultValue';
          } else {
            this.defaultValue = 'value';
          }
        });
      Button("Change selection area style")
        .width('100%')
        .type(ButtonType.Normal)
        .borderRadius(20)
        .onClick(() => {
          this.select = {
            options: [
              { value: 'Option 1', icon: $r("app.media.dingding") },
              { value: 'Option 2', icon: $r("app.media.dingding") },
            ],
            selected: -1,
            selectValue: 'Option 1',
            onSelect: (index: number) => {
              if (index === 0) {
                this.alert('Option 1');
              } else if (index === 1) {
                this.alert('Option 2');
              }
            }
          };
        });

      Button("Change search area style")
        .width('100%')
        .type(ButtonType.Normal)
        .borderRadius(20)
        .onClick(() => {
          this.search = {
            componentBackgroundColor: '#e0eee8'
          }
        });
    }.padding({ left: 16, right: 16 })
  }

  private alert(message: string): void {
    AlertDialog.show({
      message: message
    })
  }
}

Example 6: Setting the Caret Position Using controller

This example demonstrates how to use the controller parameter to set the caret position, select the content in the specified area, and disable the editing state.

import { AtomicServiceSearch } from '@kit.ArkUI';

@Entry
@Component
struct Index {
  controller: SearchController = new SearchController();

  build() {
    Column({ space : 10 }) {
      Text('Setting the caret position using controller').alignSelf(ItemAlign.Start).decoration({
        type: TextDecorationType.Underline,
        color: Color.Black,
        style: TextDecorationStyle.SOLID
      }).margin({top:20, bottom: 20})

      AtomicServiceSearch(
        {
          value: 'Default Value',
          placeholder: 'Type to Search...',
          controller: this.controller,
          search: {
            searchButton: {
              searchButtonValue: 'SEARCH',
              options: { fontSize: '12fp', fontColor: '#ff0e1216' }
            }
          }
        },
      );
      Button('caretPosition to 1').onClick(() => {
        this.controller.caretPosition(1);
      }).width('100%')
      Button('stopEditing').onClick(() => {
        this.controller.stopEditing();
      }).width('100%')
      Button('Selection [0,3]').onClick(() => {
        this.controller.setTextSelection(0, 3)
      }).width('100%')
    }.padding({ left: 16, right: 16 })
  }

  public alert(message: string): void {
    AlertDialog.show({
      message: message,
    })
  }
}

Example 7: Setting the Enter Key Type

This example demonstrates how to use the enterKeyType attribute to dynamically change the effect of the Enter key on the soft keyboard.

import { AtomicServiceSearch } from '@kit.ArkUI';

@Entry
@Component
struct Index {
  @State enterTypes: Array<EnterKeyType> = [EnterKeyType.Go, EnterKeyType.Search, EnterKeyType.Send, EnterKeyType.Done, EnterKeyType.Next, EnterKeyType.PREVIOUS, EnterKeyType.NEW_LINE]
  @State index: number = 0

  build() {
    Column({ space : 10 }) {
      Text('Enter key type as search').alignSelf(ItemAlign.Start).decoration({
        type: TextDecorationType.Underline,
        color: Color.Black,
        style: TextDecorationStyle.SOLID
      }).margin({top:20, bottom: 20})

      AtomicServiceSearch({
        placeholder: 'Enter key type as search',
        search: {
          enterKeyType: this.enterTypes[this.index]
        }
      })

      Button('Change EnterKeyType').onClick(() => {
        this.index = (this.index + 1) % this.enterTypes.length;
      }).width('100%')

    }.padding({ left: 16, right: 16 })
  }

  public alert(message: string): void {
    AlertDialog.show({
      message: message,
    })
  }
}

Example 8: Setting Text Feature Effects

This example demonstrates how to use the fontFeature attribute to display text with various typographic features.

import { AtomicServiceSearch } from '@kit.ArkUI';

@Entry
@Component
struct Index {
  build() {
    Column({ space : 10 }) {
      Text('Setting text feature effects').alignSelf(ItemAlign.Start).decoration({
        type: TextDecorationType.Underline,
        color: Color.Black,
        style: TextDecorationStyle.SOLID
      }).margin({top:20, bottom: 20})

      AtomicServiceSearch({
        value: 'This is ss01 on : 0123456789',
        search: {
          fontFeature: "\"ss012\" on"
        }
      });

      AtomicServiceSearch({
        value: 'This is ss01 off : 0123456789',
        search: {
          fontFeature: "\"ss01\" off"
        }
      });
    }.padding({ left: 16, right: 16 })
  }

  public alert(message: string): void {
    AlertDialog.show({
      message: message,
    })
  }
}

Example 9: Setting Text Auto-Adaptation

This example demonstrates how to use the minFontSize and maxFontSize attributes to implement the text auto-adaptation features.

import { AtomicServiceSearch } from '@kit.ArkUI';

@Entry
@Component
struct Index {
  build() {
    Column({ space : 10 }) {
      Text('Setting text auto-adaptation').alignSelf(ItemAlign.Start).decoration({
        type: TextDecorationType.Underline,
        color: Color.Black,
        style: TextDecorationStyle.SOLID
      }).margin({top:20, bottom: 20})

      AtomicServiceSearch({
        value: 'This is the text without the adaptive font',
      }).width('80%').height(40).borderWidth(1).borderRadius(20)

      AtomicServiceSearch({
        value: 'This is the text without the adaptive font',
        search: {
          minFontSize: 4,
          maxFontSize: 40
        }
      }).width('80%').height(40).borderWidth(1).borderRadius(20)
    }.padding({ left: 16, right: 16 })
  }

  public alert(message: string): void {
    AlertDialog.show({
      message: message,
    })
  }
}

Example 10: Setting Custom Menu Extensions

This example demonstrates how to use the editMenuOptions API to create custom menu extensions for text settings. It includes customizing text content, icons, and callbacks for these extensions.

import { AtomicServiceSearch } from '@kit.ArkUI';

@Entry
@Component
struct Index {
  onCreateMenu = (menuItems: Array<TextMenuItem>) => {
    let item1: TextMenuItem = {
      content: 'custom1',
      icon: $r('app.media.startIcon'),
      id: TextMenuItemId.of('custom1'),
    }
    let item2: TextMenuItem = {
      content: 'custom2',
      id: TextMenuItemId.of('custom2'),
      icon: $r('app.media.startIcon'),
    }
    menuItems.push(item1)
    menuItems.unshift(item2)
    return menuItems
  }

  onMenuItemClick = (menuItem: TextMenuItem, textRange: TextRange) => {
    if (menuItem.id.equals(TextMenuItemId.of("custom2"))) {
      console.log("Intercept id: custom2 start:" + textRange.start + "; end:" + textRange.end)
      return true
    }
    if (menuItem.id.equals(TextMenuItemId.COPY)) {
      console.log("Intercept COPY start:" + textRange.start + "; end:" + textRange.end)
      return true
    }
    if (menuItem.id.equals(TextMenuItemId.SELECT_ALL)) {
      console.log("Do not intercept SELECT_ALL start:" + textRange.start + "; end:" + textRange.end)
      return false
    }
    return false
  }

  @State editMenuOptions: EditMenuOptions = {
    onCreateMenu: this.onCreateMenu, onMenuItemClick: this.onMenuItemClick
  }

  build() {
    Column({ space : 10 }) {
      Text('Setting custom menu extensions').alignSelf(ItemAlign.Start).decoration({
        type: TextDecorationType.Underline,
        color: Color.Black,
        style: TextDecorationStyle.SOLID
      }).margin({top:20, bottom: 20})

      AtomicServiceSearch({
        value:'Default input',
        search: {
          editMenuOptions : this.editMenuOptions
        }
      })
    }.padding({ left: 16, right: 16 })
  }

  public alert(message: string): void {
    AlertDialog.show({
      message: message,
    })
  }
}

Example 11: Setting the Horizontal Alignment, Caret Style, and Background Color of the Selected Text

This example shows how to set the horizontal alignment, caret style, and background color of the selected text using textAlign, caretStyle, and selectedBackgroundColor.

import { AtomicServiceSearch } from '@kit.ArkUI';

@Entry
@Component
struct Index {
  build() {
    Column() {
      Text('Setting horizontal alignment/caret style/background color of selected text').alignSelf(ItemAlign.Start).decoration({
        type: TextDecorationType.Underline,
        color: Color.Black,
        style: TextDecorationStyle.SOLID
      }).margin({top:20, bottom: 20})

      AtomicServiceSearch({
        value: 'Search textAlign sample',
        search: {
          textAlign: TextAlign.Center,
          caretStyle: { width: 3, color: Color.Green },
          selectedBackgroundColor: Color.Gray
        }
      })
    }.padding({ left: 16, right: 16 })
  }

  public alert(message: string): void {
    AlertDialog.show({
      message: message,
    })
  }
}

Example 12: Setting Input Filtering

This example shows how to set input filtering using inputFilter.

import { AtomicServiceSearch } from '@kit.ArkUI';

@Entry
@Component
struct Index {
  @State filterValue: string = '';

  build() {
    Column() {
      Column({ space: 10 }) {
        Text('Setting input filtering').alignSelf(ItemAlign.Start).decoration({
          type: TextDecorationType.Underline,
          color: Color.Black,
          style: TextDecorationStyle.SOLID
        }).margin({top:20, bottom: 20})
        AtomicServiceSearch({
          placeholder: 'please enter...',
          search: {
            inputFilter: {
              inputFilterValue : '[a-z]',
              error: (filterValue: string) => {this.filterValue = filterValue}
            }
          }
        })
        Text('Filter:' + this.filterValue).alignSelf(ItemAlign.Start)

      }
    }.padding({ left: 16, right: 16 })
  }

  public alert(message: string): void {
    AlertDialog.show({
      message: message,
    })
  }
}

你可能感兴趣的鸿蒙文章

harmony 鸿蒙ArcButton

harmony 鸿蒙ArcSlider

harmony 鸿蒙Chip

harmony 鸿蒙ChipGroup

harmony 鸿蒙ComposeListItem

harmony 鸿蒙ComposeTitleBar

harmony 鸿蒙advanced.Counter

harmony 鸿蒙Dialog Box (Dialog)

harmony 鸿蒙DialogV2

harmony 鸿蒙DownloadFileButton

0  赞
