Crown Event

A crown event is an event triggered when the crown of a wearable device is rotated. Event dispatch relies on component focus, and you can customize event handling through focus events.

NOTE

This event is supported since API version 18. Updates will be marked with a superscript to indicate their earliest API version.

Manual rotation of the crown has default interaction logic. For example, rotating the crown causes the scrollbar to scroll in the direction of the rotation.

A component must have focus to receive crown events. Focus control can be managed using focusable, defaultFocus, and focusOnTouch.

This event is only supported on wearable devices.

By default, the following components support crown events: Slider, DatePicker, TextPicker, TimePicker, Scroll, List, Grid, WaterFlow, ArcList, Refresh, and Swiper.

onDigitalCrown

onDigitalCrown(handler: Optional<Callback<CrownEvent>>): T

Called when the crown is rotated while the component has focus.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Return value |Type |Description | |———|—————| |T |Current component.|

CrownEvent

Defines a data structure for the crown event received by a component. It includes timestamp, angular velocity, rotation angle, and crown action.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Name	Type	Description
timestamp	number	Timestamp.
angularVelocity	number	Angular velocity in degrees per second (°/s).
degree	number	Relative rotation angle. Unit: degrees Value range: [-360, 360]
action	CrownAction	Crown action.
stopPropagation	() => void	Stops event propagation.

Example

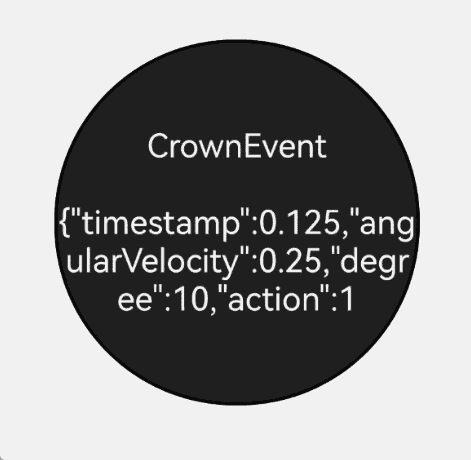

This example demonstrates how to register a crown event on a component and receive event data.

// xxx.ets
@Entry
@Component
struct CityList {
  @State message: string = "onDigitalCrown";

  build() {
    Column() {
      Row(){
        Stack() {
          Text(this.message)
            .fontSize(20)
            .fontColor(Color.White)
            .backgroundColor("#262626")
            .textAlign(TextAlign.Center)
            .focusable(true)
            .focusOnTouch(true)
            .defaultFocus(true)
            .borderWidth(2)
            .width(223).height(223)
            .borderRadius(110)
            .onDigitalCrown((event: CrownEvent) => {
              event.stopPropagation();
              this.message = "CrownEvent\n\n" + JSON.stringify(event);
              console.debug("action:%d, angularVelocity:%f, degree:%f, timestamp:%f",
                event.action, event.angularVelocity, event.degree, event.timestamp);
            })
        }.width("100%").height("100%")
      }.width("100%").height("100%")
    }
  }
}
